Standard Puller
173K-...
Description
- heavy-duty, forged pattern
- 2 arms, with very narrow forged pulling hooks
- especially suitable for difficult to reach areas
- zinc-plated, spindle and pulling hook end gunmetal-finish
- high grade tool steel

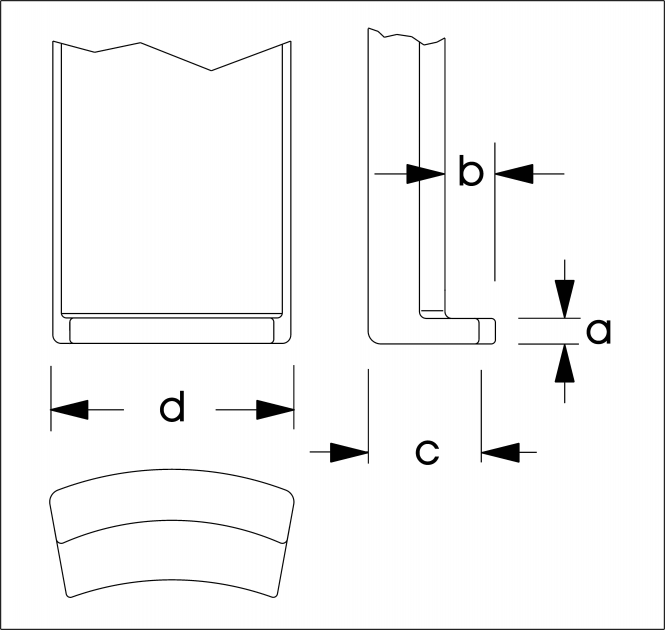

Measurements
| Number | Span width mm | Depth mm | A mm | B mm | Weight g | More |
|---|---|---|---|---|---|---|
| 173K-80 | 20-90 | 100 | 3,6 | 8 | 1000 | PU:1 c mm:14 d mm:28 Wrench size mm:17 |
| 173K-130 | 25-130 | 100 | 3,6 | 8 | 1200 | PU:1 c mm:14 d mm:28 Wrench size mm:17 |
| 173K-160 | 50-160 | 150 | 5 | 7,5 | 2850 | PU:1 c mm:15 d mm:40 Wrench size mm:22 |
| 173K-200 | 60-200 | 150 | 5 | 7,5 | 3400 | PU:1 c mm:15 d mm:40 Wrench size mm:22 |
