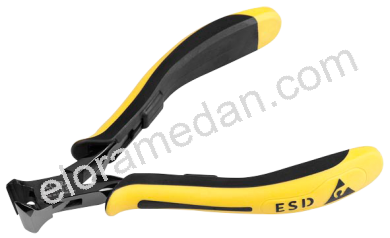

Electronic Oblique Cutter ESD
4590
Description
- for frontal virtually flush cutting of wires, can be used horizontally and vertically for work with electrostatic endangered components
- wide head, long cutting edges, with fine bevel, maximum stability under load by additional inductive hardening and box joint, with double opening leaf spring, polished and high gloss gunmetal-finish, with 2-C ESD handles, surface resistance 106-109 Ohm
- cutting edge hardness 61-63 HRC
- ELORA-high grade tool steel C60 / 1.0601
- DIN ISO 9654, ESD: DIN IEC 614340-5-1
Measurements
| Number | Hard mm / AWG | Medium mm / AWG | Soft mm / AWG | Length mm | Weight g |
|---|---|---|---|---|---|
| 4590-F E 2K | 0,5 / 24 | 1,2 / 16 | 1,6 / 14 | 125 | 126 |
