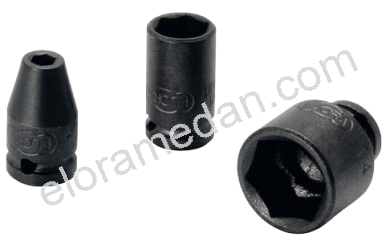

Impact Sockets 1/4", inch
788A-...
Description
- for power tools
- special steel, phosphated
- female square drive according to DIN 3121-G 6,3, ISO 1174
- according to DIN 3129, ISO 2725-2
Istilah Lain / Penyebutan
impact socket 1/4, mata kunci sok impact 1/4, mata sock impact 1/4, mata sok impact 1/4

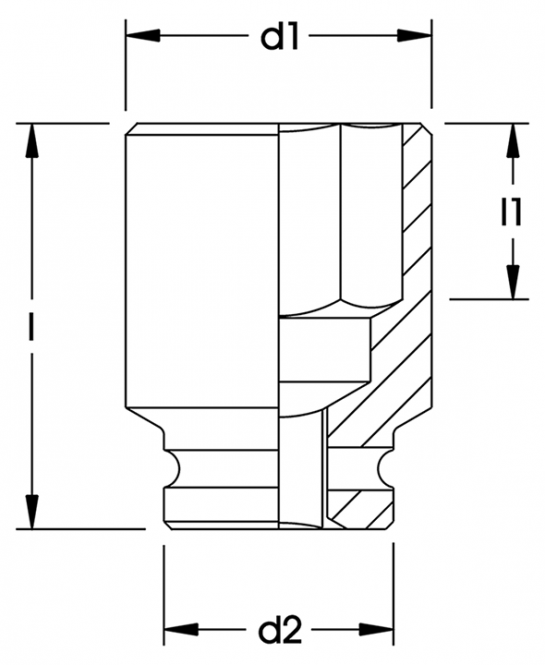

Measurements
| Number | Length mm | L1 mm | D1 mm | D2 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 788A-1/4 | 23 | 5 | 10,5 | 13 | 15 | PU:6 Locking Pin :7883-11 Locking Ring :7884-11 Productinformation: Attention: locking pin and locking ring are not included! |
| 788A-5/16 | 23 | 5 | 12 | 13 | 15 | PU:6 Locking Pin :7883-11 Locking Ring :7884-11 Productinformation: Attention: locking pin and locking ring are not included! |
| 788A-11/32 | 23 | 5 | 13 | 13 | 15 | PU:6 Locking Pin :7883-11 Locking Ring :7884-11 Productinformation: Attention: locking pin and locking ring are not included! |
