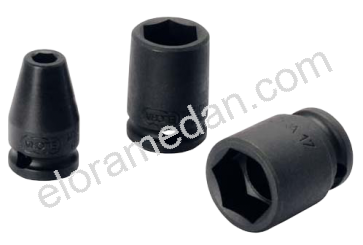

Impact Sockets 3/8"
789-...
Description
- for power tools
- special steel, phosphated
- female square drive according to DIN 3121-G 10, ISO 1174
- according to DIN 3129, ISO 2725-2
Istilah Lain / Penyebutan
impact socket 3/8, mata kunci sok impact 3/8, mata sock impact 3/8, mata sok impact 3/8

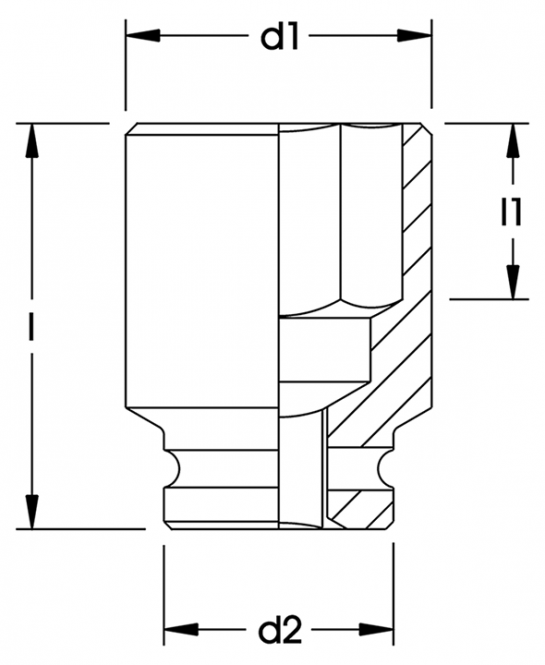

Measurements
| Number | Length mm | L1 mm | D1 mm | D2 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 789-6 | 32 | 5 | 11,3 | 19 | 40 | PU:6 Locking Pin :7893-15 Locking Ring :7894-15 Productinformation: Attention: locking pin and locking ring are not included! |
| 789-7 | 32 | 5 | 12,5 | 19 | 40 | PU:6 Locking Pin :7893-15 Locking Ring :7894-15 Productinformation: Attention: locking pin and locking ring are not included! |
| 789-8 | 32 | 6 | 13,7 | 19 | 40 | PU:6 Locking Pin :7893-15 Locking Ring :7894-15 Productinformation: Attention: locking pin and locking ring are not included! |
| 789-9 | 32 | 6 | 15,0 | 19 | 40 | PU:6 Locking Pin :7893-15 Locking Ring :7894-15 Productinformation: Attention: locking pin and locking ring are not included! |
| 789-10 | 32 | 7 | 16,3 | 19 | 41 | PU:6 Locking Pin :7893-15 Locking Ring :7894-15 Productinformation: Attention: locking pin and locking ring are not included! |
| 789-11 | 32 | 7 | 17,5 | 19 | 41 | PU:6 Locking Pin :7893-15 Locking Ring :7894-15 Productinformation: Attention: locking pin and locking ring are not included! |
| 789-12 | 32 | 8 | 19,0 | 19 | 58 | PU:6 Locking Pin :7893-15 Locking Ring :7894-15 Productinformation: Attention: locking pin and locking ring are not included! |
| 789-13 | 32 | 8 | 20,0 | 22 | 40 | PU:6 Locking Pin :7893-18 Locking Ring :7894-18 Productinformation: Attention: locking pin and locking ring are not included! |
| 789-14 | 32 | 9 | 21,3 | 22 | 58 | PU:6 Locking Pin :7893-18 Locking Ring :7894-18 Productinformation: Attention: locking pin and locking ring are not included! |
| 789-15 | 32 | 9 | 22,5 | 22 | 58 | PU:6 Locking Pin :7893-18 Locking Ring :7894-18 Productinformation: Attention: locking pin and locking ring are not included! |
| 789-16 | 32 | 10 | 23,8 | 22 | 58 | PU:6 Locking Pin :7893-18 Locking Ring :7894-18 Productinformation: Attention: locking pin and locking ring are not included! |
| 789-17 | 32 | 10 | 25,0 | 22 | 66 | PU:6 Locking Pin :7893-18 Locking Ring :7894-18 Productinformation: Attention: locking pin and locking ring are not included! |
| 789-18 | 32 | 11 | 26,3 | 22 | 66 | PU:6 Locking Pin :7893-18 Locking Ring :7894-18 Productinformation: Attention: locking pin and locking ring are not included! |
| 789-19 | 32 | 12 | 27,5 | 22 | 66 | PU:6 Locking Pin :7893-18 Locking Ring :7894-18 Productinformation: Attention: locking pin and locking ring are not included! |
| 789-20 | 34 | 12 | 29,0 | 22 | 75 | PU:6 Locking Pin :7893-18 Locking Ring :7894-18 Productinformation: Attention: locking pin and locking ring are not included! |
| 789-21 | 34 | 13 | 30,0 | 22 | 75 | PU:6 Locking Pin :7893-18 Locking Ring :7894-18 Productinformation: Attention: locking pin and locking ring are not included! |
| 789-22 | 34 | 14 | 31,3 | 22 | 75 | PU:6 Locking Pin :7893-18 Locking Ring :7894-18 Productinformation: Attention: locking pin and locking ring are not included! |
| 789-23 | 34 | 15 | 32,5 | 22 | 75 | PU:6 Locking Pin :7893-18 Locking Ring :7894-18 Productinformation: Attention: locking pin and locking ring are not included! |
| 789-24 | 36 | 16 | 33,8 | 22 | 75 | PU:6 Locking Pin :7893-18 Locking Ring :7894-18 Productinformation: Attention: locking pin and locking ring are not included! |
