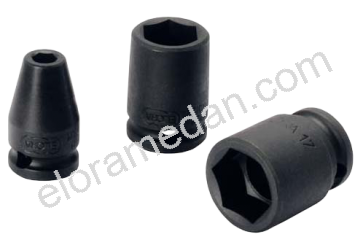

Impact Sockets 3/8", inch
789A-...
Description
- for power tools
- special steel, phosphated
- female square drive according to DIN 3121-G 10, ISO 1174
- according to DIN 3129, ISO 2725-2
Istilah Lain / Penyebutan
impact socket 3/8, mata kunci sok impact 3/8, mata sock impact 3/8, mata sok impact 3/8
Measurements

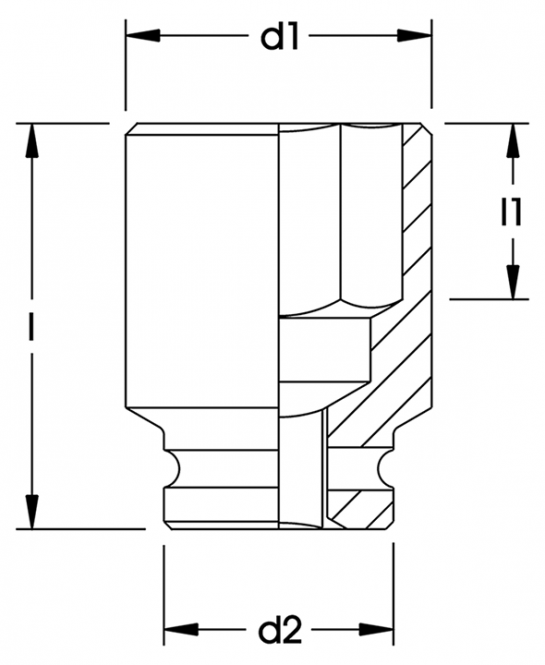

| Number | Length mm | L1 mm | D1 mm | D2 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 789A-5/16 | 29,5 | 5 | 12,5 | 19 | 40 | PU:6 Locking Pin :7893-15 Locking Ring :7894-15 Productinformation: Attention: locking pin and locking ring are not included! |
| 789A-7/16 | 29,5 | 7 | 17,0 | 19 | 41 | PU:6 Locking Pin :7893-15 Locking Ring :7894-15 Productinformation: Attention: locking pin and locking ring are not included! |
| 789A-1/2 | 29,5 | 7 | 20,0 | 19 | 55 | PU:6 Locking Pin :7893-15 Locking Ring :7894-15 Productinformation: Attention: locking pin and locking ring are not included! |
| 789A-9/16 | 31,5 | 8 | 22,0 | 22 | 56 | PU:6 Locking Pin :7893-18 Locking Ring :7894-18 Productinformation: Attention: locking pin and locking ring are not included! |
