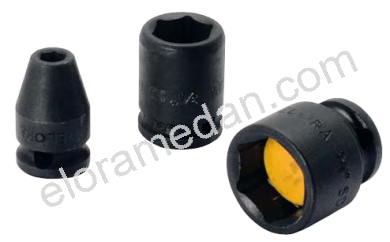

Impact Sockets 3/8"
789MG-...
Description
- for power tools
- special steel, gunmetal-finish
- female square drive according to DIN 3121-G 10, ISO1174
- according to DIN 3129, ISO 2725-2
Istilah Lain / Penyebutan
impact socket magnet 3/8, mata kunci sok impact magnet 3/8, mata sock impact magnet 3/8, mata sok impact magnet 3/8
Measurements
| Number | Length mm | L1 mm | D1 mm | D2 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 789MG-8 | 30 | 4 | 14,5 | 19 | 42 | PU:6 Locking Pin :7893-15 Locking Ring :7894-15 Productinformation: Attention: locking pin and locking ring are not included! |
| 789MG-13 | 30 | 6 | 19 | 22 | 42 | PU:6 Locking Pin :7893-18 Locking Ring :7894-18 Productinformation: Attention: locking pin and locking ring are not included! |
| 789MG-15 | 30 | 7 | 22 | 22 | 42 | PU:6 Locking Pin :7893-18 Locking Ring :7894-18 Productinformation: Attention: locking pin and locking ring are not included! |
| 789MG-16 | 30 | 8 | 24 | 22 | 62 | PU:6 Locking Pin :7893-18 Locking Ring :7894-18 Productinformation: Attention: locking pin and locking ring are not included! |
| 789MG-17 | 30 | 9 | 25 | 22 | 62 | PU:6 Locking Pin :7893-18 Locking Ring :7894-18 Productinformation: Attention: locking pin and locking ring are not included! |
| 789MG-18 | 30 | 9 | 26 | 22 | 62 | PU:6 Locking Pin :7893-18 Locking Ring :7894-18 Productinformation: Attention: locking pin and locking ring are not included! |
