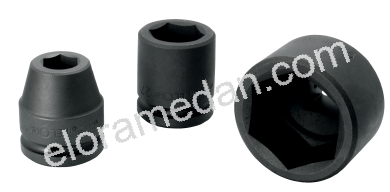

Impact Sockets 3/4", inch
791A-...
Description
- for power tools
- special steel, phosphated
- female square drive according to DIN 3121-H 20, ISO 1174
- according to DIN 3129, ISO 2725-2
Istilah Lain / Penyebutan
impact socket 3/4, mata kunci sok impact 3/4, mata sock impact 3/4, mata sok impact 3/4

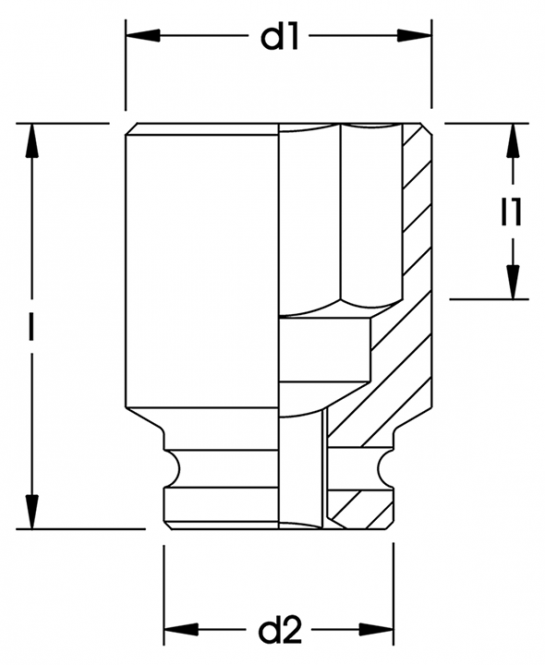

Measurements
| Number | Length mm | L1 mm | D1 mm | D2 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 791A-3/4 | 50 | 12 | 31,5 | 44 | 370 | PU:3 Locking Pin :7913-37 Locking Ring :7914-36 Productinformation: Attention: locking pin and locking ring are not included! |
| 791A-13/16 | 50 | 14 | 34 | 44 | 380 | PU:3 Locking Pin :7913-37 Locking Ring :7914-36 Productinformation: Attention: locking pin and locking ring are not included! |
| 791A-7/8 | 50 | 16 | 36 | 44 | 395 | PU:3 Locking Pin :7913-37 Locking Ring :7914-36 Productinformation: Attention: locking pin and locking ring are not included! |
| 791A-15/16 | 50 | 16 | 38 | 44 | 380 | PU:3 Locking Pin :7913-37 Locking Ring :7914-36 Productinformation: Attention: locking pin and locking ring are not included! |
| 791A-1 | 53 | 18 | 40 | 44 | 380 | PU:3 Locking Pin :7913-37 Locking Ring :7914-36 Productinformation: Attention: locking pin and locking ring are not included! |
| 791A-1.1/16 | 53 | 18 | 42 | 44 | 385 | PU:3 Locking Pin :7913-37 Locking Ring :7914-36 Productinformation: Attention: locking pin and locking ring are not included! |
| 791A-1.1/8 | 53 | 20 | 44 | 44 | 390 | PU:3 Locking Pin :7913-37 Locking Ring :7914-36 Productinformation: Attention: locking pin and locking ring are not included! |
| 791A-1.3/16 | 53 | 20 | 46 | 44 | 390 | PU:3 Locking Pin :7913-37 Locking Ring :7914-36 Productinformation: Attention: locking pin and locking ring are not included! |
| 791A-1.1/4 | 56 | 20 | 48 | 44 | 479 | PU:1 Locking Pin :7913-37 Locking Ring :7914-36 Productinformation: Attention: locking pin and locking ring are not included! |
| 791A-1.5/16 | 56 | 23 | 50 | 44 | 494 | PU:1 Locking Pin :7913-37 Locking Ring :7914-36 Productinformation: Attention: locking pin and locking ring are not included! |
| 791A-1.3/8 | 56 | 23 | 52 | 44 | 518 | PU:1 Locking Pin :7913-37 Locking Ring :7914-36 Productinformation: Attention: locking pin and locking ring are not included! |
| 791A-1.7/16 | 56 | 23 | 54 | 44 | 558 | PU:1 Locking Pin :7913-37 Locking Ring :7914-36 Productinformation: Attention: locking pin and locking ring are not included! |
| 791A-1.1/2 | 56 | 25 | 56 | 44 | 583 | PU:1 Locking Pin :7913-37 Locking Ring :7914-36 Productinformation: Attention: locking pin and locking ring are not included! |
| 791A-1.5/8 | 57 | 25 | 59 | 44 | 628 | PU:1 Locking Pin :7913-37 Locking Ring :7914-36 Productinformation: Attention: locking pin and locking ring are not included! |
| 791A-1.7/8 | 62 | 29 | 68 | 54 | 899 | PU:1 Locking Pin :7913-45 Locking Ring :7914-46 Productinformation: Attention: locking pin and locking ring are not included! |
