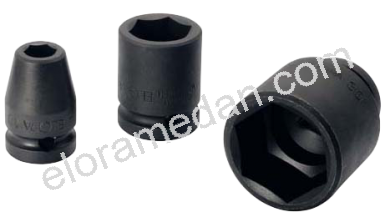

Impact Sockets 1", metric
792-...
Description
- for power tools
- special steel, phosphated
- female square drive according to DIN 3121-H 25, ISO1174
- according to DIN 3129, ISO 2725-2
Istilah Lain / Penyebutan
impact socket 1, mata kunci sok impact 1, mata sock impact 1, mata sok impact 1

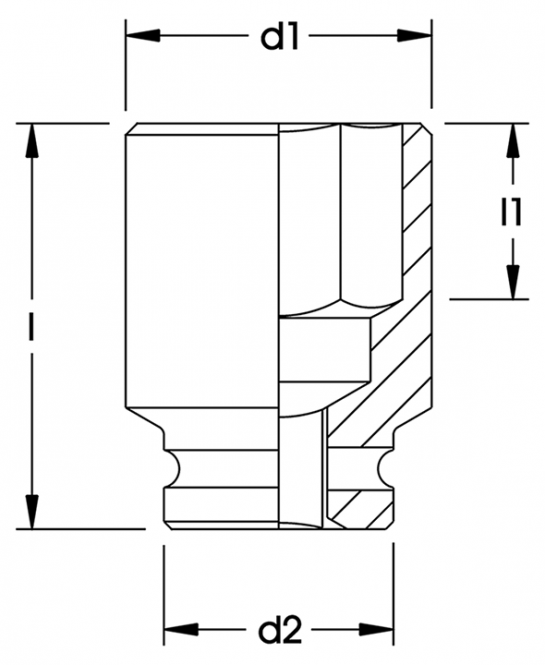

Measurements
| Number | Length mm | L1 mm | D1 mm | D2 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 792-19 | 56 | 12 | 35,5 | 54 | 684 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792-21 | 56 | 13 | 38 | 54 | 667 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792-22 | 56 | 14 | 39,5 | 54 | 672 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792-24 | 57 | 16 | 42 | 54 | 696 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792-25 | 58 | 17 | 43 | 54 | 706 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792-26 | 58 | 17 | 44,5 | 54 | 703 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792-27 | 59 | 18 | 45,5 | 54 | 691 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792-28 | 59 | 19 | 46 | 54 | 690 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792-29 | 60 | 19 | 48 | 54 | 693 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792-30 | 61 | 20 | 49,5 | 54 | 691 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792-32 | 61 | 21 | 52 | 54 | 692 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792-33 | 61 | 21 | 53 | 54 | 686 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792-34 | 62 | 22 | 54,5 | 54 | 685 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792-36 | 64 | 24 | 57 | 54 | 746 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792-38 | 64 | 25 | 59,5 | 54 | 771 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792-41 | 68 | 26 | 63 | 54 | 787 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792-42 | 68 | 26 | 64,5 | 54 | 836 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792-46 | 72 | 28 | 69,5 | 54 | 1133 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792-50 | 76 | 31 | 74,5 | 54 | 1208 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792-52 | 76 | 31 | 76 | 54 | 1298 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792-55 | 80 | 33 | 80,5 | 54 | 1399 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792-60 | 85 | 36 | 87 | 54 | 1687 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792-65 | 90 | 39 | 93 | 54 | 2004 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792-70 | 95 | 41 | 99,5 | 54 | 2415 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
