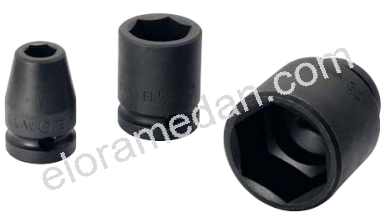

Impact Sockets 1", inch
792A-...
Description
- for power tools
- special steel, phosphated
- female square drive according to DIN 3121-H 25, ISO1174
- according to DIN 3129, ISO 2725-2
Istilah Lain / Penyebutan
impact socket 1, mata kunci sok impact 1, mata sock impact 1, mata sok impact 1
Measurements

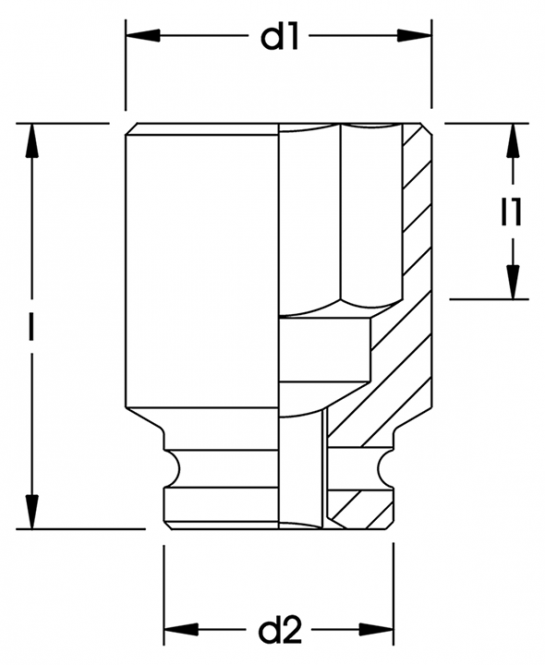

| Number | Length mm | L1 mm | D1 mm | D2 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 792A-3/4 | 55 | 9,5 | 35 | 54 | 582 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792A-15/16 | 55 | 13 | 41 | 54 | 580 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792A-1 | 55 | 13 | 43 | 54 | 641 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792A-1.1/8 | 57 | 16,5 | 48 | 54 | 660 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792A-1.1/4 | 57 | 17 | 51 | 54 | 640 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792A-1.5/16 | 60 | 19 | 54 | 54 | 679 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792A-1.3/8 | 60 | 19 | 54 | 54 | 659 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792A-1.7/16 | 60 | 19 | 54 | 54 | 631 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792A-1.1/2 | 64 | 22 | 60 | 54 | 797 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792A-1.5/8 | 64 | 22 | 63 | 54 | 821 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792A-1.13/16 | 69 | 25,5 | 70 | 54 | 1013 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792A-1.7/8 | 72 | 27 | 70 | 54 | 1020 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792A-2 | 72 | 27 | 73 | 54 | 1080 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792A-2.3/16 | 80 | 32 | 82 | 54 | 1413 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792A-2.1/4 | 80 | 33 | 82 | 54 | 1405 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
