Impact Sockets 1", metric
792IN-...
Description
- for inside hexagon screws
- for power tools
- special steel, phosphated
- female square according to DIN 3121-H 25, ISO 1174

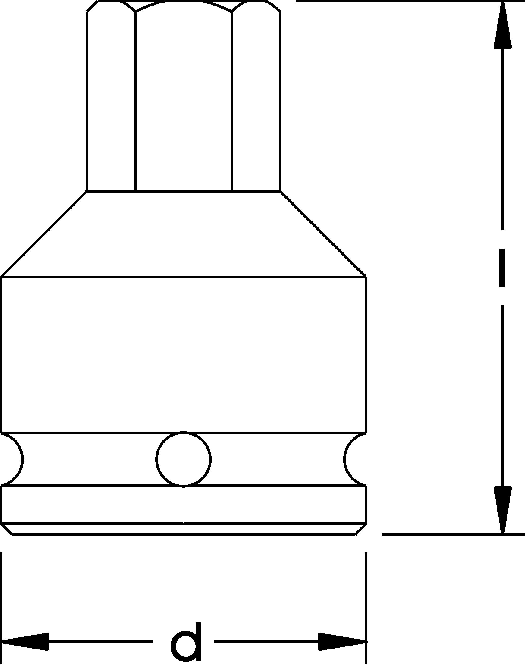

Measurements
| Number | Length mm | D mm | Locking Pin | Locking Ring | Weight g |
|---|---|---|---|---|---|
| 792IN-10 | 100 | 54 | 7923-45 | 7924-45 | 680 |
| 792IN-12 | 100 | 54 | 7923-45 | 7924-45 | 700 |
| 792IN-14 | 100 | 54 | 7923-45 | 7924-45 | 730 |
| 792IN-17 | 89 | 54 | 7923-45 | 7924-45 | 793 |
| 792IN-19 | 100 | 54 | 7923-45 | 7924-45 | 810 |
| 792IN-22 | 100 | 54 | 7923-45 | 7924-45 | 840 |
| 792IN-24 | 100 | 54 | 7923-45 | 7924-45 | 890 |
| 792IN-27 | 100 | 54 | 7923-45 | 7924-45 | 930 |
| 792IN-30 | 100 | 54 | 7923-45 | 7924-45 | 1050 |
| 792IN-32 | 100 | 54 | 7923-45 | 7924-45 | 1260 |
