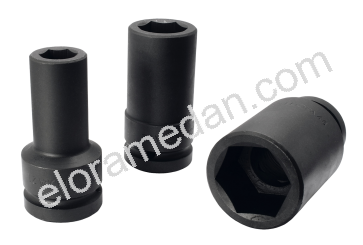

Impact Sockets 1", extra deep, metric
792LT-...
Description
- for power tools
- special steel, phosphated
- female square drive according to DIN 3121-H 25, ISO 1174
Istilah Lain / Penyebutan
impact socket panjang 1, mata kunci sok impact panjang 1, mata sock impact panjang 1, mata sok impact panjang 1
Measurements

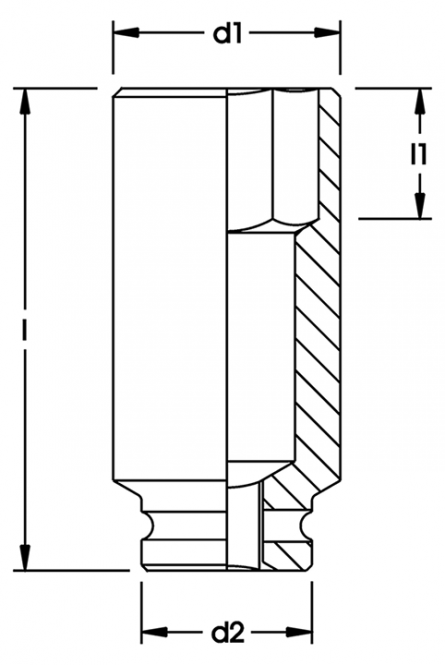

| Number | Length mm | L1 mm | D1 mm | D2 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 792LT-21 | 110 | 18 | 38 | 54 | 957 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792LT-22 | 110 | 19 | 39,5 | 54 | 973 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792LT-24 | 110 | 21 | 42 | 54 | 1036 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792LT-27 | 110 | 23 | 45,5 | 54 | 1075 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792LT-30 | 110 | 25 | 49,5 | 54 | 1136 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792LT-32 | 110 | 26 | 52 | 54 | 1208 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792LT-33 | 110 | 26 | 53 | 54 | 1216 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792LT-34 | 110 | 27 | 54,5 | 54 | 1236 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792LT-36 | 110 | 29 | 57 | 54 | 1293 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792LT-38 | 110 | 30 | 59,5 | 54 | 1398 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792LT-41 | 110 | 31 | 63 | 54 | 1477 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792LT-46 | 110 | 33 | 69,5 | 54 | 1798 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792LT-50 | 110 | 36 | 74,5 | 54 | 2000 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792LT-55 | 110 | 38 | 80,5 | 54 | 2200 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792LT-60 | 110 | 41 | 87 | 54 | 2540 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792LT-65 | 110 | 44 | 93 | 54 | 3000 | PU:1 Locking Pin :7923-45 Locking Ring :7924-44 Productinformation: Attention: locking pin and locking ring are not included! |
| 792LT-75 | 120 | 48 | 105,5 | 86 | 4055 | PU:1 Locking Pin :7933-75 Locking Ring :7934-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 792LT-80 | 125 | 51 | 112 | 86 | 5390 | PU:1 Locking Pin :7933-75 Locking Ring :7934-75 Productinformation: Attention: locking pin and locking ring are not included! |
