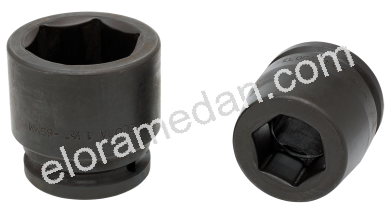

Impact Sockets 1.1/2", metric
793-...
Description
- for power tools
- special steel, phosphated
- female square drive according to DIN 3121-H 40, ISO1174
- according to DIN 3129, ISO 2725-2
Istilah Lain / Penyebutan
impact socket 1.1/2, mata kunci sok impact 1.1/2, mata sock impact 1.1/2, mata sok impact 1.1/2

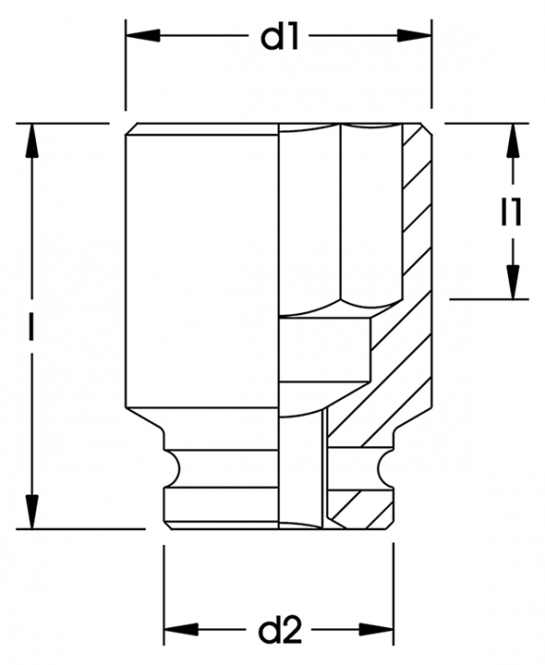

Measurements
| Number | Length mm | L1 mm | D1 mm | D2 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 793-36 | 80 | 19 | 64 | 86 | 2260 | PU:1 Locking Pin :7933-75 Locking Ring :7934-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793-41 | 80 | 22 | 70 | 86 | 2400 | PU:1 Locking Pin :7933-75 Locking Ring :7934-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793-46 | 80 | 25,5 | 75 | 86 | 2500 | PU:1 Locking Pin :7933-75 Locking Ring :7934-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793-50 | 82 | 27 | 80 | 86 | 2385 | PU:1 Locking Pin :7933-75 Locking Ring :7934-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793-55 | 89 | 30 | 86 | 86 | 2600 | PU:1 Locking Pin :7933-75 Locking Ring :7934-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793-60 | 92 | 33 | 92 | 86 | 3000 | PU:1 Locking Pin :7933-75 Locking Ring :7934-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793-65 | 96 | 35 | 100 | 86 | 3400 | PU:1 Locking Pin :7933-75 Locking Ring :7934-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793-70 | 101 | 38 | 105 | 86 | 3700 | PU:1 Locking Pin :7933-75 Locking Ring :7934-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793-75 | 105 | 41 | 109 | 86 | 3835 | PU:1 Locking Pin :7933-75 Locking Ring :7934-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793-80 | 110 | 44 | 115 | 86 | 4200 | PU:1 Locking Pin :7933-75 Locking Ring :7934-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793-85 | 116 | 47 | 121 | 86 | 5240 | PU:1 Locking Pin :7933-75 Locking Ring :7934-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793-90 | 118 | 49 | 130 | 86 | 5200 | PU:1 Locking Pin :7933-75 Locking Ring :7934-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793-95 | 118 | 49 | 135 | 127 | 9000 | PU:1 Locking Pin :7933-116 Locking Ring :7934-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793-100 | 125 | 54 | 140 | 127 | 8200 | PU:1 Locking Pin :7933-116 Locking Ring :7934-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793-105 | 125 | 54 | 150 | 127 | 9200 | PU:1 Locking Pin :7933-116 Locking Ring :7934-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793-110 | 137 | 62 | 155 | 127 | 10800 | PU:1 Locking Pin :7933-116 Locking Ring :7934-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793-115 | 137 | 67 | 160 | 127 | 12700 | PU:1 Locking Pin :7933-116 Locking Ring :7934-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793-120 | 145 | 67 | 165 | 127 | 12000 | PU:1 Locking Pin :7933-116 Locking Ring :7934-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793-125 | 145 | 67 | 180 | 127 | 14400 | PU:1 Locking Pin :7933-116 Locking Ring :7934-116 Productinformation: Attention: locking pin and locking ring are not included! |
