Impact Sockets 1.1/2", inch
793A-...
Description
- for power tools
- special steel, phosphated
- female square drive according to DIN 3121-H 40, ISO1174
- according to DIN 3129, ISO 2725-2
Istilah Lain / Penyebutan
impact socket 1.1/2, mata kunci sok impact 1.1/2, mata sock impact 1.1/2, mata sok impact 1.1/2

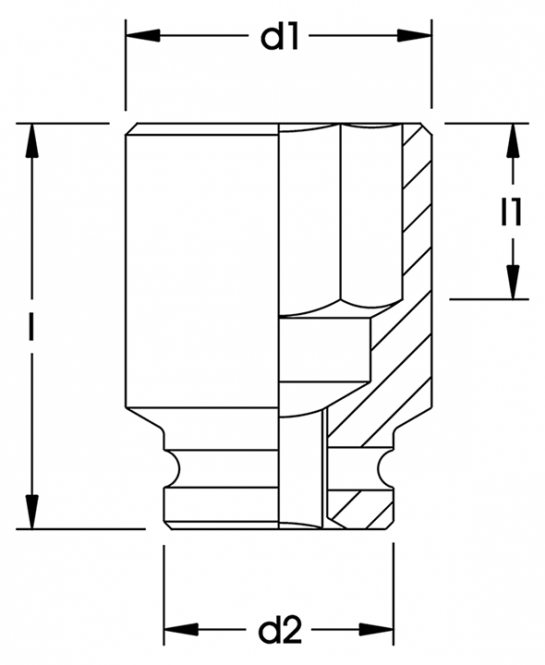

Measurements
| Number | Length mm | L1 mm | D1 mm | D2 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 793A-1.1/2 | 80 | 22 | 64 | 86 | 2200 | PU:1 Locking Pin :7933-75 Locking Ring :7934-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793A-1.11/16 | 80 | 25 | 75 | 86 | 2400 | PU:1 Locking Pin :7933-75 Locking Ring :7934-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793A-1.13/16 | 80 | 25,5 | 75 | 86 | 2320 | PU:1 Locking Pin :7933-75 Locking Ring :7934-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793A-2.1/2 | 96 | 35 | 100 | 86 | 3200 | PU:1 Locking Pin :7933-75 Locking Ring :7934-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793A-2.15/16 | 105 | 41 | 109 | 86 | 3800 | PU:1 Locking Pin :7933-75 Locking Ring :7934-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793A-3.1/8 | 110 | 44 | 115 | 86 | 7500 | PU:1 Locking Pin :7933-75 Locking Ring :7934-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793A-3.1/4 | 116 | 47 | 121 | 86 | 4800 | PU:1 Locking Pin :7933-75 Locking Ring :7934-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793A-3.5/16 | 116 | 47 | 121 | 86 | 4800 | PU:1 Locking Pin :7933-75 Locking Ring :7934-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793A-3.3/8 | 116 | 49 | 127 | 86 | 5400 | PU:1 Locking Pin :7933-75 Locking Ring :7934-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793A-3.7/8 | 125 | 54 | 140 | 127 | 8500 | PU:1 Locking Pin :7933-116 Locking Ring :7934-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793A-3.15/16 | 125 | 54 | 140 | 127 | 8200 | PU:1 Locking Pin :7933-116 Locking Ring :7934-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793A-4 | 125 | 54 | 145 | 127 | 8800 | PU:1 Locking Pin :7933-116 Locking Ring :7934-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793A-4.1/16 | 125 | 54 | 145 | 127 | 8600 | PU:1 Locking Pin :7933-116 Locking Ring :7934-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793A-4.1/8 | 125 | 54 | 150 | 127 | 9500 | PU:1 Locking Pin :7933-116 Locking Ring :7934-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793A-4.3/16 | 137 | 62 | 150 | 127 | 10200 | PU:1 Locking Pin :7933-116 Locking Ring :7934-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793A-4.1/4 | 137 | 62 | 150 | 127 | 10000 | PU:1 Locking Pin :7933-116 Locking Ring :7934-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793A-4.5/16 | 137 | 62 | 155 | 127 | 10600 | PU:1 Locking Pin :7933-116 Locking Ring :7934-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793A-4.3/8 | 137 | 62 | 155 | 127 | 10400 | PU:1 Locking Pin :7933-116 Locking Ring :7934-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793A-4.7/16 | 137 | 62 | 155 | 127 | 9800 | PU:1 Locking Pin :7933-116 Locking Ring :7934-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793A-4.1/2 | 137 | 62 | 160 | 127 | 11200 | PU:1 Locking Pin :7933-116 Locking Ring :7934-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793A-4.5/8 | 143 | 67 | 165 | 127 | 11600 | PU:1 Locking Pin :7933-116 Locking Ring :7934-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793A-4.3/4 | 145 | 67 | 165 | 127 | 11400 | PU:1 Locking Pin :7933-116 Locking Ring :7934-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793A-4.7/8 | 145 | 67 | 170 | 127 | 12200 | PU:1 Locking Pin :7933-116 Locking Ring :7934-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793A-5 | 150 | 72 | 180 | 127 | 14400 | PU:1 Locking Pin :7933-116 Locking Ring :7934-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793A-5.1/8 | 158 | 76 | 180 | 127 | 14800 | PU:1 Locking Pin :7933-116 Locking Ring :7934-116 Productinformation: Attention: locking pin and locking ring are not included! |
