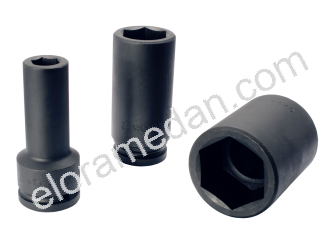

Impact Sockets 1.1/2", extra deep, inch
793LTA-...
Description
- for power tools
- special steel, phosphated
- female square drive according to DIN 3121-H 40, ISO 1174
Istilah Lain / Penyebutan
impact socket panjang 1.1/2, mata kunci sok impact panjang 1.1/2, mata sock impact panjang 1.1/2, mata sok impact panjang 1.1/2

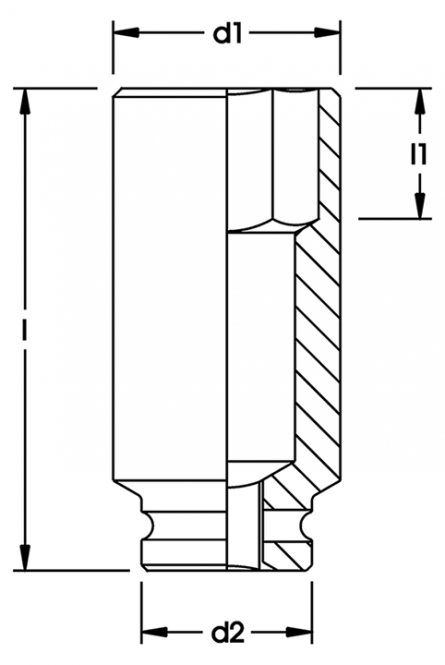

Measurements
| Number | Length mm | L1 mm | D1 mm | D2 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 793LTA-1.9/16 | 140 | 22 | 70 | 86 | 4500 | PU:1 Locking Pin :7934-75 Locking Ring :7933-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-1.5/8 | 140 | 22 | 70 | 86 | 4500 | PU:1 Locking Pin :7934-75 Locking Ring :7933-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-1.11/16 | 140 | 25 | 75 | 86 | 4500 | PU:1 Locking Pin :7934-75 Locking Ring :7933-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-1.3/4 | 140 | 25,5 | 75 | 86 | 4500 | PU:1 Locking Pin :7934-75 Locking Ring :7933-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-1.7/8 | 140 | 27 | 80 | 86 | 4500 | PU:1 Locking Pin :7934-75 Locking Ring :7933-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-2 | 140 | 27 | 80 | 86 | 4500 | PU:1 Locking Pin :7934-75 Locking Ring :7933-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-2.1/16 | 140 | 30 | 86 | 86 | 4500 | PU:1 Locking Pin :7934-75 Locking Ring :7933-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-2.3/16 | 140 | 32 | 86 | 86 | 4500 | PU:1 Locking Pin :7934-75 Locking Ring :7933-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-2.1/4 | 140 | 32,5 | 86 | 86 | 4500 | PU:1 Locking Pin :7934-75 Locking Ring :7933-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-2.3/8 | 140 | 35 | 92 | 86 | 4600 | PU:1 Locking Pin :7934-75 Locking Ring :7933-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-2.9/16 | 140 | 35 | 100 | 86 | 4900 | PU:1 Locking Pin :7934-75 Locking Ring :7933-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-2.5/8 | 140 | 38 | 100 | 86 | 4900 | PU:1 Locking Pin :7934-75 Locking Ring :7933-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-2.3/4 | 140 | 38 | 105 | 86 | 5000 | PU:1 Locking Pin :7934-75 Locking Ring :7933-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-2.7/8 | 140 | 41 | 109 | 86 | 5600 | PU:1 Locking Pin :7934-75 Locking Ring :7933-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-2.15/16 | 140 | 41 | 109 | 86 | 5600 | PU:1 Locking Pin :7934-75 Locking Ring :7933-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-3 | 140 | 44 | 115 | 86 | 5900 | PU:1 Locking Pin :7934-75 Locking Ring :7933-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-3.1/8 | 140 | 44 | 115 | 86 | 5900 | PU:1 Locking Pin :7934-75 Locking Ring :7933-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-3.3/8 | 140 | 49 | 127 | 86 | 6600 | PU:1 Locking Pin :7934-75 Locking Ring :7933-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-3.7/16 | 140 | 49 | 127 | 86 | 6600 | PU:1 Locking Pin :7934-75 Locking Ring :7933-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-3.1/2 | 140 | 49 | 130 | 86 | 9900 | PU:1 Locking Pin :7934-75 Locking Ring :7933-75 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-3.5/8 | 140 | 49 | 135 | 127 | 9900 | PU:1 Locking Pin :7934-116 Locking Ring :7933-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-3.3/4 | 150 | 49 | 135 | 127 | 9900 | PU:1 Locking Pin :7934-116 Locking Ring :7933-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-3.13/16 | 150 | 54 | 140 | 127 | 10700 | PU:1 Locking Pin :7934-116 Locking Ring :7933-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-3.7/8 | 150 | 54 | 140 | 127 | 10700 | PU:1 Locking Pin :7934-116 Locking Ring :7933-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-4 | 150 | 54 | 145 | 127 | 11200 | PU:1 Locking Pin :7934-116 Locking Ring :7933-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-4.1/8 | 150 | 54 | 150 | 127 | 11900 | PU:1 Locking Pin :7934-116 Locking Ring :7933-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-4.1/4 | 160 | 62 | 150 | 127 | 11900 | PU:1 Locking Pin :7934-116 Locking Ring :7933-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-4.1/2 | 160 | 62 | 160 | 127 | 13200 | PU:1 Locking Pin :7934-116 Locking Ring :7933-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-4.5/8 | 170 | 67 | 165 | 127 | 14300 | PU:1 Locking Pin :7934-116 Locking Ring :7933-116 Productinformation: Attention: locking pin and locking ring are not included! |
| 793LTA-5 | 180 | 72 | 180 | 127 | 18200 | PU:1 Locking Pin :7934-116 Locking Ring :7933-116 Productinformation: Attention: locking pin and locking ring are not included! |
