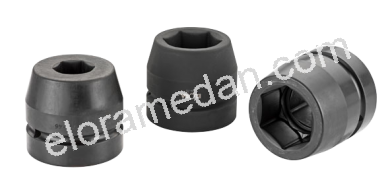

Impact Sockets 2.1/2", metric
794-...
Description
- for power tools
- special steel, phosphated
- female square drive according to DIN 3121-H 63, ISO1174
- according to DIN 3129, ISO 2725-2
Istilah Lain / Penyebutan
impact socket 2.1/2, mata kunci sok impact 2.1/2, mata sock impact 2.1/2, mata sok impact 2.1/2

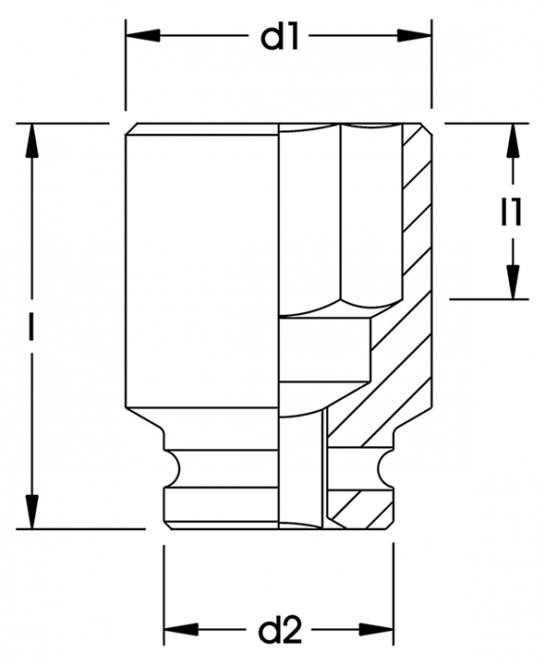

Measurements
| Number | Length mm | L1 mm | D1 mm | D2 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 794-46 | 115 | 25,5 | 104 | 127 | 7000 | PU:1 Locking Pin :7935-127 Locking Ring :7936-127 Productinformation: Attention: locking pin and locking ring are not included! |
| 794-50 | 115 | 27 | 104 | 127 | 7000 | PU:1 Locking Pin :7935-127 Locking Ring :7936-127 Productinformation: Attention: locking pin and locking ring are not included! |
| 794-55 | 115 | 30 | 104 | 127 | 7000 | PU:1 Locking Pin :7935-127 Locking Ring :7936-127 Productinformation: Attention: locking pin and locking ring are not included! |
| 794-60 | 115 | 35 | 104 | 127 | 7000 | PU:1 Locking Pin :7935-127 Locking Ring :7936-127 Productinformation: Attention: locking pin and locking ring are not included! |
| 794-65 | 115 | 35 | 104 | 127 | 7000 | PU:1 Locking Pin :7935-127 Locking Ring :7936-127 Productinformation: Attention: locking pin and locking ring are not included! |
| 794-80 | 125 | 44 | 115 | 127 | 7600 | PU:1 Locking Pin :7935-127 Locking Ring :7936-127 Productinformation: Attention: locking pin and locking ring are not included! |
| 794-85 | 130 | 47 | 127 | 127 | 8000 | PU:1 Locking Pin :7935-127 Locking Ring :7936-127 Productinformation: Attention: locking pin and locking ring are not included! |
| 794-110 | 150 | 62 | 160 | 127 | 11000 | PU:1 Locking Pin :7935-127 Locking Ring :7936-127 Productinformation: Attention: locking pin and locking ring are not included! |
| 794-115 | 150 | 62 | 165 | 127 | 11500 | PU:1 Locking Pin :7935-127 Locking Ring :7936-127 Productinformation: Attention: locking pin and locking ring are not included! |
| 794-120 | 158 | 67 | 170 | 127 | 12000 | PU:1 Locking Pin :7935-127 Locking Ring :7936-127 Productinformation: Attention: locking pin and locking ring are not included! |
| 794-125 | 158 | 67 | 170 | 127 | 12000 | PU:1 Locking Pin :7935-127 Locking Ring :7936-127 Productinformation: Attention: locking pin and locking ring are not included! |
| 794-135 | 174 | 76 | 190 | 127 | 17000 | PU:1 Locking Pin :7935-127 Locking Ring :7936-127 Productinformation: Attention: locking pin and locking ring are not included! |
| 794-140 | 176 | 79 | 190 | 127 | 17000 | PU:1 Locking Pin :7935-127 Locking Ring :7936-127 Productinformation: Attention: locking pin and locking ring are not included! |
| 794-145 | 182 | 83 | 200 | 150 | 20000 | PU:1 Locking Pin :7935-133 Locking Ring :7936-136 Productinformation: Attention: locking pin and locking ring are not included! |
| 794-150 | 190 | 88 | 210 | 150 | 22000 | PU:1 Locking Pin :7935-133 Locking Ring :7936-136 Productinformation: Attention: locking pin and locking ring are not included! |
| 794-155 | 190 | 88 | 210 | 150 | 22000 | PU:1 Locking Pin :7935-133 Locking Ring :7936-136 Productinformation: Attention: locking pin and locking ring are not included! |
| 794-160 | 194 | 91 | 220 | 150 | 23000 | PU:1 Locking Pin :7935-133 Locking Ring :7936-136 Productinformation: Attention: locking pin and locking ring are not included! |
