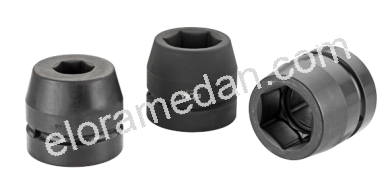

Impact Sockets 2.1/2", inch
794A-...
Description
- for power tools
- special steel, phosphated
- female square drive according to DIN 3121-H 63, ISO1174
- according to DIN 3129, ISO 2725-2
Istilah Lain / Penyebutan
impact socket 2.1/2, mata kunci sok impact 2.1/2, mata sock impact 2.1/2, mata sok impact 2.1/2

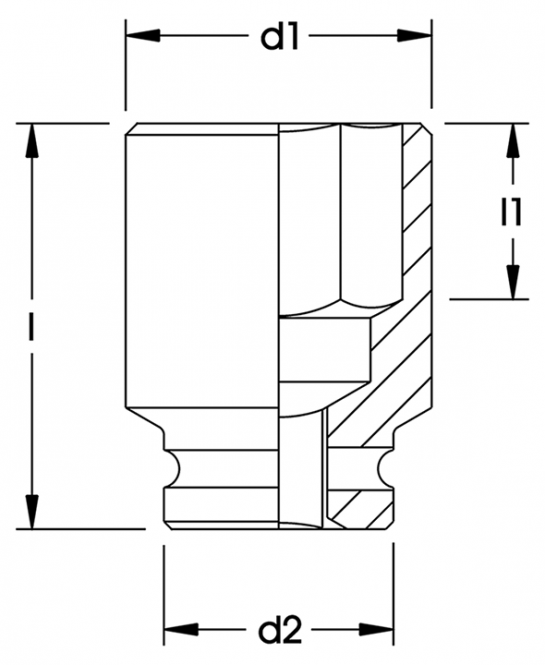

Measurements
| Number | Length mm | L1 mm | D1 mm | D2 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 794A-1.5/8 | 115 | 21,5 | 104 | 127 | 7000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-1.11/16 | 115 | 25 | 104 | 127 | 7000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-1.3/4 | 115 | 25,5 | 104 | 127 | 7000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-1.13/16 | 115 | 25,5 | 104 | 127 | 7000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-1.7/8 | 115 | 27 | 104 | 127 | 7000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-1.15/16 | 115 | 27 | 104 | 127 | 7000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-2 | 115 | 27 | 104 | 127 | 7000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-2.1/16 | 115 | 30 | 104 | 127 | 7000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-2.1/8 | 115 | 30 | 104 | 127 | 7000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-2.3/16 | 115 | 32 | 104 | 127 | 7000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-2.1/4 | 115 | 32,5 | 104 | 127 | 7000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-2.5/16 | 115 | 33 | 104 | 127 | 7000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-2.3/8 | 115 | 35 | 104 | 127 | 7000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-2.7/16 | 115 | 35 | 104 | 127 | 7000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-2.1/2 | 115 | 35 | 104 | 127 | 7000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-2.9/16 | 115 | 35 | 104 | 127 | 7000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-2.5/8 | 115 | 38 | 104 | 127 | 7000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-2.11/16 | 115 | 38 | 104 | 127 | 7000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-2.3/4 | 115 | 38 | 104 | 127 | 7000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-2.13/16 | 125 | 40 | 115 | 127 | 7600 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-2.7/8 | 125 | 41 | 115 | 127 | 7600 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-3.1/4 | 130 | 47 | 127 | 127 | 8000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-3.1/2 | 132 | 49 | 135 | 127 | 8100 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-3.5/8 | 132 | 49 | 135 | 127 | 8100 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-3.3/4 | 132 | 49 | 140 | 127 | 8200 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-3.7/8 | 141 | 54 | 145 | 127 | 9000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-4 | 141 | 54 | 150 | 127 | 9600 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-4.1/16 | 141 | 54 | 150 | 127 | 9600 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-4.1/8 | 141 | 54 | 150 | 127 | 9600 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-4.1/4 | 150 | 62 | 155 | 127 | 10500 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-4.1/2 | 150 | 62 | 165 | 127 | 11300 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-4.5/8 | 158 | 67 | 170 | 127 | 12000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-4.3/4 | 158 | 67 | 170 | 127 | 12000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-4.7/8 | 158 | 67 | 170 | 127 | 12000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-5 | 165 | 72 | 180 | 127 | 14100 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-5.1/8 | 174 | 76 | 180 | 127 | 14100 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-5.1/4 | 174 | 76 | 190 | 127 | 17000 | PU:1 Locking Pin :7935-110 Locking Ring :7936-114 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-5.5/8 | 182 | 83 | 200 | 150 | 20000 | PU:1 Locking Pin :7935-133 Locking Ring :7936-136 Productinformation: Attention: locking pin and locking ring are not included! |
| 794A-5.3/4 | 182 | 83 | 200 | 150 | 20000 | PU:1 Locking Pin :7935-133 Locking Ring :7936-136 Productinformation: Attention: locking pin and locking ring are not included! |
