Impact Sockets 1/4"
796-E...
Description
- for outside TORX®screws
- for power tools
- special steel, phosphated
- female square according to DIN 3121-G6, 3, ISO 1174
- TORX®= reg. trademark of Acument Intellectual Properties, LLC. USA
Istilah Lain / Penyebutan
impact socket 1/4, mata kunci sok impact 1/4, mata sock impact 1/4, mata sok impact 1/4

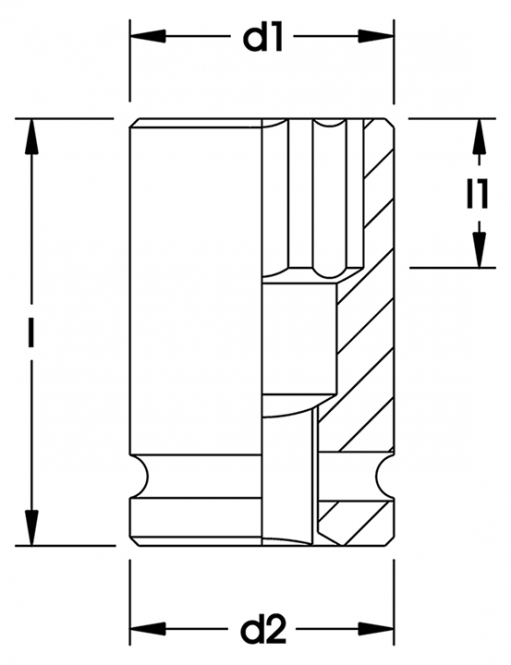

Measurements
| Number | Torx size corner to corner | Length mm | L1 mm | D1 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 796-E4 | 3,86 | 23 | 3,2 | 7,4 | 15 | PU:6 d2 mm:13 Locking Pin :7883-11 Locking Ring :7884-11 Productinformation: Attention: locking pin and locking ring are not included! |
| 796-E5 | 4,73 | 23 | 3,2 | 8,3 | 15 | PU:6 d2 mm:13 Locking Pin :7883-11 Locking Ring :7884-11 Productinformation: Attention: locking pin and locking ring are not included! |
| 796-E6 | 5,74 | 23 | 4 | 9,3 | 15 | PU:6 d2 mm:13 Locking Pin :7883-11 Locking Ring :7884-11 Productinformation: Attention: locking pin and locking ring are not included! |
| 796-E7 | 6,16 | 23 | 4,8 | 9,8 | 15 | PU:6 d2 mm:13 Locking Pin :7883-11 Locking Ring :7884-11 Productinformation: Attention: locking pin and locking ring are not included! |
| 796-E8 | 7,52 | 23 | 5,6 | 11,1 | 15 | PU:6 d2 mm:13 Locking Pin :7883-11 Locking Ring :7884-11 Productinformation: Attention: locking pin and locking ring are not included! |
| 796-E10 | 9,42 | 23 | 6,4 | 13 | 16 | PU:6 d2 mm:13 Locking Pin :7883-11 Locking Ring :7884-11 Productinformation: Attention: locking pin and locking ring are not included! |
