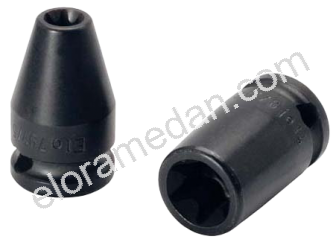

Impact Sockets 3/8"
797-E...
Description
- for outside TORX®screws
- for power tools
- special steel, phosphated
- female square drive according to DIN 3121-G 10, ISO 1174
- TORX®= reg. trademark of Acument Intellectual Properties, LLC. USA
Istilah Lain / Penyebutan
impact socket torx 3/8, mata kunci sok impact torx 3/8, mata sock impact torx 3/8, mata sok impact torx 3/8

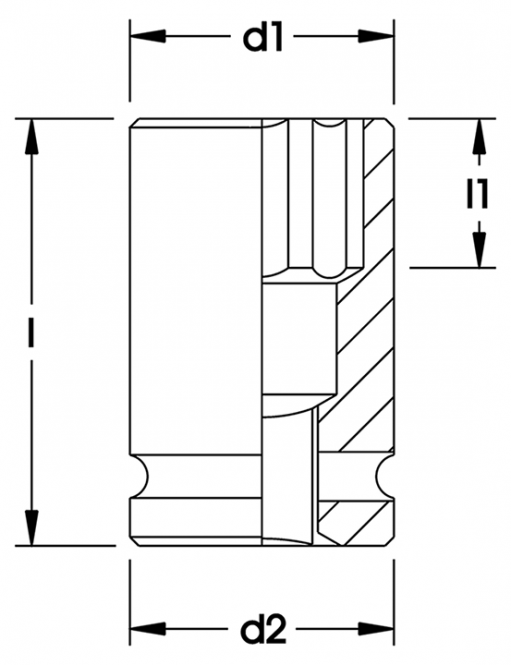

Measurements
| Number | Torx size corner to corner mm | Length mm | L1 mm | D1 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 797-E4 | 3,86 | 32 | 5 | 19 | 43 | PU:6 d2 mm:9 Locking Pin :7893-15 Locking Ring :7894-15 Productinformation: Attention: locking pin and locking ring are not included! |
| 797-E5 | 4,73 | 32 | 5 | 9 | 43 | PU:6 d2 mm:19 Locking Pin :7893-15 Locking Ring :7894-15 Productinformation: Attention: locking pin and locking ring are not included! |
| 797-E6 | 5,74 | 32 | 7 | 10 | 42 | PU:6 d2 mm:19 Locking Pin :7893-15 Locking Ring :7894-15 Productinformation: Attention: locking pin and locking ring are not included! |
| 797-E7 | 6,16 | 32 | 7 | 10 | 42 | PU:6 d2 mm:19 Locking Pin :7893-15 Locking Ring :7894-15 Productinformation: Attention: locking pin and locking ring are not included! |
| 797-E8 | 7,52 | 32 | 8 | 10,5 | 42 | PU:6 d2 mm:19 Locking Pin :7893-15 Locking Ring :7894-15 Productinformation: Attention: locking pin and locking ring are not included! |
| 797-E10 | 9,42 | 32 | 9 | 12,5 | 42 | PU:6 d2 mm:19 Locking Pin :7893-15 Locking Ring :7894-15 Productinformation: Attention: locking pin and locking ring are not included! |
| 797-E12 | 11,17 | 32 | 10 | 15 | 42 | PU:6 d2 mm:19 Locking Pin :7893-15 Locking Ring :7894-15 Productinformation: Attention: locking pin and locking ring are not included! |
| 797-E14 | 12,9 | 32 | 12 | 17,5 | 44 | PU:6 d2 mm:19 Locking Pin :7893-15 Locking Ring :7894-15 Productinformation: Attention: locking pin and locking ring are not included! |
| 797-E16 | 14,76 | 32 | 12 | 19 | 42 | PU:6 d2 mm:19 Locking Pin :7893-15 Locking Ring :7894-15 Productinformation: Attention: locking pin and locking ring are not included! |
