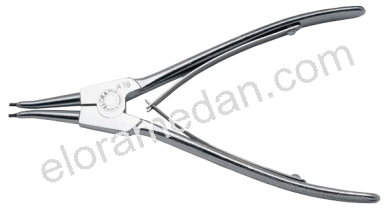

Circlip Pliers for external retaining ring
474-A1-4
Description
- for external retaining rings acc. to DIN 471, DIN 983
- straight jaws, self-opening due to mounted double leaf spring
- chrome plated, polished joint, chequered handles
- ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208
- according to DIN 5254 Form A
Measurements
| Number | For circlips from ... to Ø mm | Length mm | Length inch Inch | Ø Tip mm | Weight g |
|---|---|---|---|---|---|
| 474-A0 | 3-10 | 140 | 5,5 | 0,9 | 95 |
| 474-A1 | 10-25 | 135 | 5 | 1,3 | 110 |
| 474-A2 | 19-60 | 170 | 7 | 1,8 | 177 |
| 474-A3 | 40-100 | 220 | 9 | 2,3 | 266 |
| 474-A4 | 85-165 | 320 | 13 | 3,2 | 492 |
