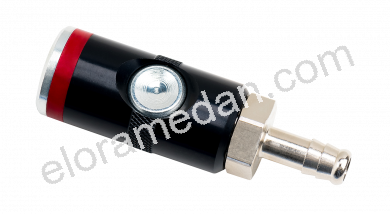

Safety Couplings with Push-Button
5025-..., 5026-...
Description
- high-quality, robust and durable quick release coupling in safety execution
- one-hand operation
- unlocking by 2 times pressing the push-button
- first push for ventilation oft he coupling, but it remains locked
- second push for releasing the coupling, thus preventing the ''whiplash effect''
- safety version corresponding to ISO 4414/EN 983
- housing made of aluminium, head and valve of hardened steel, zinc plated
- inner parts made of stainless steel, thread made of brass, nickel plated
- max. pressure 12 bar
- air flow 1800 l/min
Measurements
| Number | Connection | Length mm | Weight g |
|---|---|---|---|
| 5025-9 | Ø 9 mm hose connection | 900 | 139 |
| 5025-13 | Ø 13 mm hose connection | 950 | 140 |
| 5026-I 1/4 | 1/4' female screw thread | 750 | 152 |
| 5026-I 3/8 | 3/8' female screw thread | 750 | 140 |
| 5026-I 1/2 | 1/2' female screw thread | 750 | 160 |
| 5026-A 3/8 | 3/8' external screw thread | 700 | 149 |
| 5026-A 1/2 | 1/2' external screw thread | 750 | 154 |
