Screwdriver Sockets 3/4"
770-SIN...
Description
- for inside hexagon screws
- matt chrome-plated
- knurled
- holder made of ELORA-Chrome-Vanadium 31CrV3 / 1.2208
- female square according to DIN 3120-D 20, ISO 1174, with locking pin
- blade made of ELORA-Vanadium special steel, gunmetal finished
- according to DIN 7422

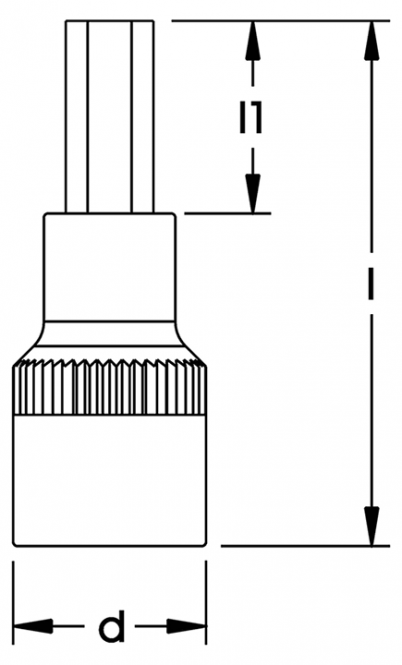

Measurements
| Number | D mm | L1 mm | Length mm | For thread diameter DIN 912 | Weight g |
|---|---|---|---|---|---|
| 770-SIN 14 | 36,0 | 25,5 | 76,5 | M16-18 | 180 |
| 770-SIN 17 | 36,0 | 25,5 | 76,5 | M20-22 | 190 |
| 770-SIN 19 | 36,0 | 25,5 | 76,5 | M24-27 | 200 |
| 770-SIN 22 | 36,0 | 25,5 | 76,5 | M30 | 215 |
