Sockets 3/4", whitworth
770SW-...
Description
- hot forged
- matt chrome-plated
- knurled
- ELORA-Chrome-Vanadium 31CrV3 / 1.2208
- female square according to DIN 3120-D 20, ISO 1174, with locking pin
- according to DIN 3124, ISO 2725-1

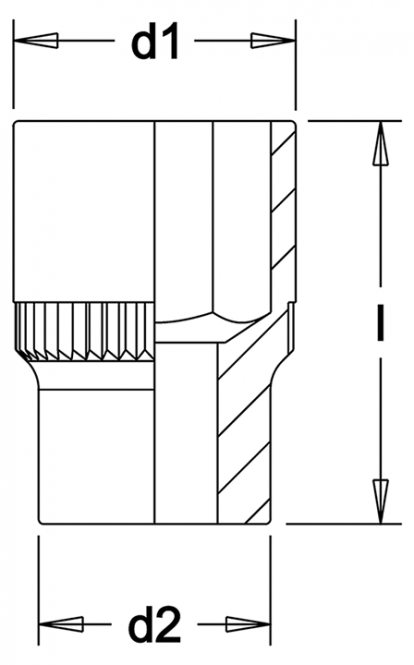

Measurements
| Number | D1 mm | D2 mm | Length mm | Weight g |
|---|---|---|---|---|
| 770-SW 1/2 | 33,5 | 35,0 | 51,0 | 190 |
| 770-SW 9/16 | 37,0 | 35,0 | 53,0 | 215 |
| 770-SW 5/8 | 40,0 | 36,0 | 55,5 | 225 |
| 770-SW 11/16 | 43,0 | 37,0 | 57,0 | 290 |
| 770-SW 3/4 | 46,3 | 39,0 | 59,5 | 300 |
| 770-SW 13/16 | 48,9 | 40,0 | 60,5 | 385 |
| 770-SW 7/8 | 52,3 | 41,0 | 61,5 | 445 |
| 770-SW 15/16 | 55,4 | 42,0 | 62,5 | 555 |
| 770-SW 1 | 58,3 | 41,0 | 63,5 | 600 |
| 770-SW 1.1/8 | 65,0 | 45,0 | 73 | 775 |
