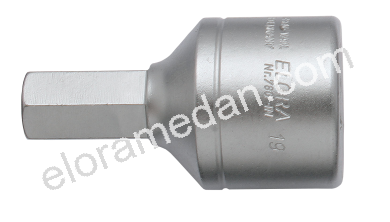

Screwdriver Sockets 1"
780-IN...
Description
- for inside hexagon screws
- matt chrome-plated
- ELORA-Chrome-Vanadium 31CrV3 / 1.2208
- female square according to DIN 3120-D 25, ISO 1174, with locking pin
- according to DIN 7422

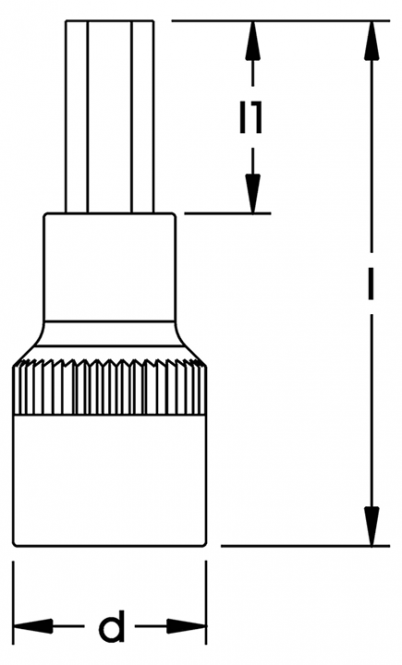

Measurements
| Number | D mm | L1 mm | Length mm | For thread diameter DIN 912 | Weight g |
|---|---|---|---|---|---|
| 780-IN 17 | 48,0 | 25,0 | 90 | M20-22 | 544 |
| 780-IN 19 | 48,0 | 25,0 | 90 | M24-27 | 569 |
| 780-IN 22 | 48,0 | 25,0 | 90 | M30 | 611 |
| 780-IN 24 | 48,0 | 25,0 | 90 | M33 | 635 |
