Double-Ended Ring Spanner, inch
110A-...
Description
- deep cranked, with thin-walled heads
- matt chrome plated
- break resistance and shatterproof quality minimize risk of injury
- ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208
- according to DIN 838, ISO 3318, ISO 1085, ISO 10104
Istilah Lain / Penyebutan
kunci ring, kunci ring besar, kunci ring kecil, ring besar, ring kecil

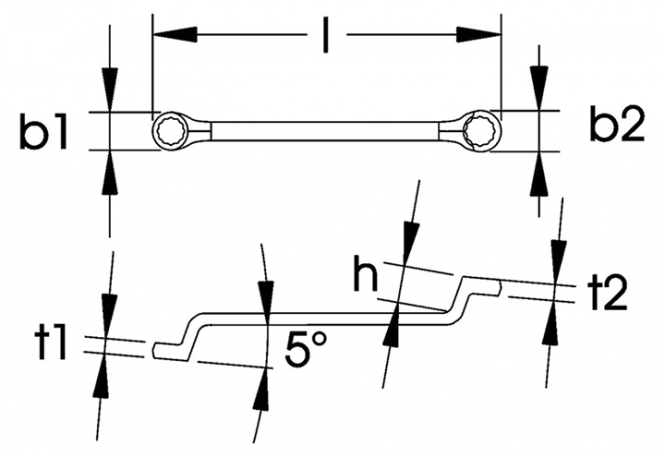

Measurements
| Number | Length mm | B1 mm | B2 mm | T1 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 110A-1/4x5/16 | 176 | 11,5 | 12,0 | 5,6 | 42 | PU:12 t2 mm:6,1 h mm:20,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-5/16x3/8 | 190,5 | 12,9 | 14,3 | 6,6 | 60 | PU:12 t2 mm:7,1 h mm:21,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-3/8x7/16 | 206 | 15,7 | 17,0 | 7,6 | 86 | PU:12 t2 mm:8,2 h mm:22,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-7/16x1/2 | 220,5 | 18,7 | 20,0 | 8,7 | 122 | PU:12 t2 mm:9,2 h mm:22,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-1/2x9/16 | 236 | 20,0 | 23,0 | 9,2 | 150 | PU:12 t2 mm:10,1 h mm:24,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-1/2x19/32 | 230 | 22,0 | 23,0 | 10,0 | 150 | PU:12 t2 mm:10,0 h mm:24,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-9/16x5/8 | 236,4 | 21,6 | 24,0 | 9,7 | 150 | PU:12 t2 mm:10,1 h mm:24,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-5/8x11/16 | 250 | 24,8 | 26,4 | 10,8 | 210 | PU:12 t2 mm:11,4 h mm:26,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-5/8x3/4 | 265 | 25,5 | 28,0 | 11,5 | 260 | PU:6 t2 mm:12,0 h mm:27,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-11/16x3/4 | 271 | 26,4 | 29,0 | 11,4 | 260 | PU:6 t2 mm:12,7 h mm:27,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-3/4x25/32 | 271 | 27,5 | 29,0 | 12,0 | 335 | PU:6 t2 mm:12,7 h mm:27,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-13/16x7/8 | 295 | 30,0 | 33,0 | 12,0 | 350 | PU:6 t2 mm:13,0 h mm:29,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-7/8x15/16 | 330 | 33,0 | 37,0 | 13,0 | 465 | PU:3 t2 mm:14,0 h mm:30,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-15/16x1 | 331 | 36,3 | 39,3 | 14,2 | 465 | PU:3 t2 mm:14,7 h mm:30,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-1x1.1/8 | 350 | 37,0 | 41,0 | 14,0 | 500 | PU:3 t2 mm:15,0 h mm:32,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-1.1/16x1.1/8 | 370 | 40,0 | 44,0 | 15,0 | 635 | PU:3 t2 mm:16,0 h mm:33,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-1.1/16x1.1/4 | 371 | 40,7 | 45,0 | 15,2 | 670 | PU:3 t2 mm:17,1 h mm:35,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-1.3/16x1.5/16 | 371 | 45,0 | 47,8 | 17,1 | 670 | PU:3 t2 mm:18,0 h mm:33,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-1.1/4x1.7/16 | 400 | 46,0 | 54,0 | 17,0 | 870 | PU:3 t2 mm:18,0 h mm:35,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-1.5/16x1.1/2 | 400 | 46,0 | 54,0 | 17,0 | 870 | PU:3 t2 mm:18,0 h mm:35,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-1.3/8x1.1/2 | 450 | 55,0 | 60,0 | 18,0 | 1125 | PU:3 t2 mm:20,0 h mm:38,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-1.7/16x1.5/8 | 455 | 55,0 | 60,0 | 18,0 | 1125 | PU:3 t2 mm:20,0 h mm:38,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-1.13/16x2 | 520 | 68,0 | 73,0 | 20,0 | 1700 | PU:1 t2 mm:21,0 h mm:45,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-1.7/8x2 | 520 | 68,0 | 73,0 | 20,0 | 1700 | PU:1 t2 mm:21,0 h mm:45,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-2.9/16x2.3/4 | 685 | 102,0 | 108,0 | 27,0 | 4850 | PU:1 t2 mm:28,0 h mm:58,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110A-3x3.1/8 | 790 | 120,0 | 127,0 | 29,0 | 7350 | PU:1 t2 mm:30,0 h mm:61,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
