Double-Ended Ring Spanner, metric
110M-...
Description
- deep cranked, with thin-walled heads
- matt chrome plated
- break resistance and shatterproof quality minimize risk of injury
- ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208
- according to DIN 838, ISO 3318, ISO 1085, ISO 10104
Istilah Lain / Penyebutan
kunci ring, ring besar, ring kecil

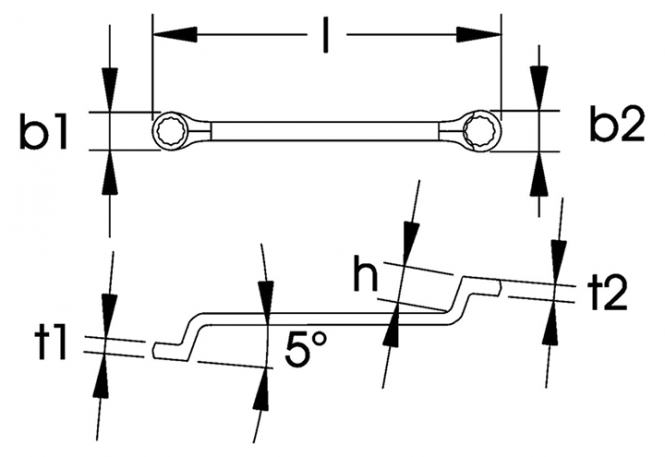

Measurements
| Number | Length mm | B1 mm | B2 mm | T1 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 110-5,5x7 | 175 | 11,0 | 12,0 | 6,0 | 42 | PU:12 t2 mm:6,0 h mm:20,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-6x7 | 176 | 10,0 | 11,5 | 5,6 | 42 | PU:12 t2 mm:6,1 h mm:20,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-6x8 | 175 | 11,0 | 12,0 | 6,0 | 50 | PU:12 t2 mm:6,0 h mm:20,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-7x8 | 185 | 14,0 | 15,0 | 6,5 | 60 | PU:12 t2 mm:6,5 h mm:21,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-7x9 | 185 | 14,0 | 15,0 | 6,5 | 60 | PU:12 t2 mm:6,5 h mm:21,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-8x9 | 190,5 | 12,9 | 14,3 | 6,6 | 60 | PU:12 t2 mm:7,1 h mm:21,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-8x10 | 190,5 | 12,9 | 15,7 | 6,6 | 60 | PU:12 t2 mm:7,6 h mm:21,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-9x11 | 200 | 16,0 | 17,5 | 7,0 | 86 | PU:12 t2 mm:8,0 h mm:22,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-10x11 | 206 | 15,7 | 17,0 | 7,6 | 86 | PU:12 t2 mm:8,2 h mm:22,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-10x12 | 206 | 15,7 | 18,7 | 7,6 | 86 | PU:12 t2 mm:8,7 h mm:22,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-10x13 | 220,5 | 15,7 | 20,0 | 7,6 | 122 | PU:12 t2 mm:9,2 h mm:22,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-11x13 | 215 | 17,5 | 20,0 | 8,0 | 122 | PU:12 t2 mm:9,0 h mm:22,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-11x14 | 215 | 17,5 | 20,0 | 8,0 | 109 | PU:12 t2 mm:9,0 h mm:22,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-12x13 | 220,5 | 18,7 | 20,0 | 8,7 | 122 | PU:12 t2 mm:9,2 h mm:23,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-12x14 | 220,5 | 18,7 | 21,6 | 8,7 | 122 | PU:12 t2 mm:9,7 h mm:23,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-13x14 | 236 | 20,0 | 21,6 | 9,2 | 150 | PU:12 t2 mm:10,2 h mm:24,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-13x15 | 236 | 20,0 | 23,0 | 9,2 | 150 | PU:12 t2 mm:10,2 h mm:24,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-13x16 | 230 | 22,0 | 23,0 | 10,0 | 150 | PU:12 t2 mm:10,0 h mm:24,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-13x17 | 250 | 20,0 | 26,4 | 9,2 | 185 | PU:12 t2 mm:11,4 h mm:25,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-14x15 | 236 | 21,6 | 23,0 | 9,7 | 150 | PU:12 t2 mm:10,1 h mm:24,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-14x17 | 250 | 24,8 | 26,4 | 10,8 | 185 | PU:12 t2 mm:11,4 h mm:25,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-16x17 | 250 | 24,8 | 26,4 | 10,8 | 210 | PU:12 t2 mm:11,4 h mm:26,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-16x18 | 260 | 24,8 | 27,5 | 10,8 | 210 | PU:12 t2 mm:12,0 h mm:26,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-17x19 | 271 | 26,4 | 29,0 | 11,4 | 260 | PU:6 t2 mm:12,7 h mm:27,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-18x19 | 271 | 27,5 | 29,0 | 12,0 | 260 | PU:6 t2 mm:12,7 h mm:27,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-18x21 | 290 | 28,0 | 33,0 | 12,0 | 335 | PU:6 t2 mm:13,0 h mm:28,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-19x22 | 291 | 29,0 | 33,0 | 12,7 | 335 | PU:6 t2 mm:13,7 h mm:28,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-19x24 | 311 | 29,0 | 36,3 | 12,7 | 335 | PU:6 t2 mm:14,2 h mm:28,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-20x22 | 291 | 30,4 | 33,0 | 13,2 | 350 | PU:6 t2 mm:13,8 h mm:29,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-21x22 | 310 | 31,5 | 34,0 | 12,5 | 430 | PU:6 t2 mm:13,5 h mm:30,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-21x23 | 311 | 32,0 | 34,8 | 13,2 | 430 | PU:6 t2 mm:14,2 h mm:30,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-21x24 | 330 | 33,0 | 37,0 | 13,0 | 465 | PU:3 t2 mm:14,0 h mm:30,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-22x24 | 321 | 33,0 | 36,2 | 13,7 | 465 | PU:3 t2 mm:14,2 h mm:30,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-24x26 | 331 | 36,3 | 39,2 | 14,2 | 460 | PU:3 t2 mm:14,7 h mm:32,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-24x27 | 331 | 36,3 | 40,7 | 14,2 | 460 | PU:3 t2 mm:15,2 h mm:32,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-24x30 | 352 | 36,3 | 45,0 | 14,2 | 500 | PU:3 t2 mm:16,6 h mm:33,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-25x28 | 352 | 38,0 | 42,6 | 14,7 | 500 | PU:3 t2 mm:15,7 h mm:32,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-27x29 | 371 | 40,7 | 45,0 | 15,2 | 635 | PU:3 t2 mm:16,6 h mm:33,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-27x30 | 371 | 40,7 | 45,0 | 15,2 | 635 | PU:3 t2 mm:16,6 h mm:33,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-27x32 | 371 | 40,7 | 47,8 | 15,2 | 635 | PU:3 t2 mm:17,1 h mm:35,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-30x32 | 371 | 45,0 | 47,8 | 16,6 | 670 | PU:3 t2 mm:17,1 h mm:35,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-30x34 | 379 | 45,0 | 50,0 | 16,6 | 870 | PU:3 t2 mm:17,3 h mm:35,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-30x36 | 402 | 45,0 | 53,0 | 16,6 | 870 | PU:3 t2 mm:17,7 h mm:35,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-32x34 | 400 | 46,0 | 54,0 | 17,0 | 870 | PU:3 t2 mm:18,0 h mm:35,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-32x36 | 402 | 47,8 | 53,0 | 17,1 | 870 | PU:3 t2 mm:17,7 h mm:35,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-34x36 | 420,5 | 50,0 | 53,0 | 17,3 | 870 | PU:3 t2 mm:17,7 h mm:35,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-36x41 | 438 | 53,0 | 60,8 | 17,7 | 1125 | PU:3 t2 mm:19,7 h mm:38,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-38x42 | 455 | 55,0 | 60,0 | 18,0 | 1125 | PU:3 t2 mm:20,0 h mm:38,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-41x46 | 485 | 60,8 | 67,5 | 19,7 | 1445 | PU:1 t2 mm:20,7 h mm:40,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-46x50 | 535 | 67,5 | 73,4 | 20,7 | 1700 | PU:1 t2 mm:22,6 h mm:45,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-55x60** | 610 | 86,0 | 92,0 | 25,0 | 3455 | PU:1 t2 mm:26,0 h mm:54,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-65x70** | 685 | 102,0 | 108,0 | 27,0 | 4850 | PU:1 t2 mm:28,0 h mm:58,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-75x80** | 790 | 120,0 | 127,0 | 29,0 | 7350 | PU:1 t2 mm:30,0 h mm:61,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 110-85x90** | 800 | 120,0 | 127,0 | 29,0 | 7000 | PU:1 t2 mm:30,0 h mm:61,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
