Double-Ended Ring Spanner, straight, metric
120-...
Description
- flat and straight pattern
- thin-walled heads
- matt chrome plated
- ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208
- Ausführung nach DIN 837, Form B, ISO 3318, ISO 1085
Istilah Lain / Penyebutan
ring rata

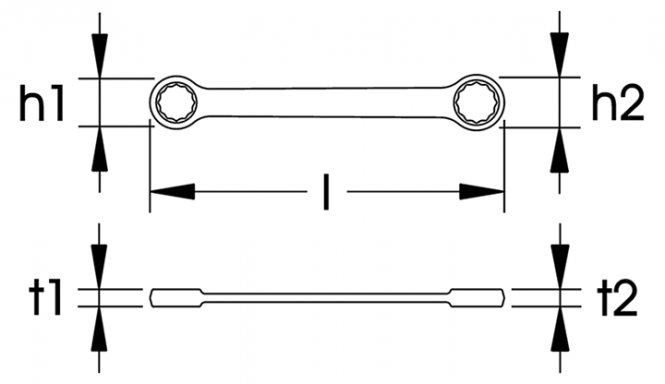

Measurements
| Number | H1 mm | H2 mm | T1 mm | T2 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 120-6x7 | 10,0 | 11,0 | 4,0 | 4,0 | 11 | PU:12 Length mm:100 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 120-8x9 | 13,0 | 14,5 | 4,5 | 4,5 | 16 | PU:12 Length mm:115 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 120-10x11 | 15,0 | 17,0 | 6,0 | 6,0 | 26 | PU:12 Length mm:125 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 120-12x13 | 18,5 | 20,0 | 7,0 | 7,0 | 37 | PU:12 Length mm:140 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 120-12x14 | 18,5 | 20,0 | 7,0 | 7,0 | 37 | PU:12 Length mm:140 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 120-13x16 | 20,5 | 25,0 | 8,0 | 8,0 | 70 | PU:12 Length mm:170 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 120-14x15 | 21,0 | 22,0 | 7,5 | 7,5 | 70 | PU:12 Length mm:155 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 120-16x17 | 24,0 | 25,0 | 8,0 | 8,0 | 70 | PU:12 Length mm:170 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 120-16x18 | 24,0 | 25,0 | 8,0 | 8,0 | 70 | PU:12 Length mm:170 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 120-17x19 | 27,0 | 28,5 | 9,0 | 9,0 | 90 | PU:6 Length mm:185 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 120-18x19 | 27,0 | 28,5 | 9,0 | 9,0 | 90 | PU:6 Length mm:185 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 120-18x21 | 30,0 | 33,0 | 10,0 | 10,0 | 116 | PU:6 Length mm:200 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 120-20x22 | 30,0 | 33,0 | 10,0 | 10,0 | 116 | PU:6 Length mm:200 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 120-21x22 | 32,0 | 34,0 | 10,5 | 10,5 | 140 | PU:6 Length mm:215 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 120-21x23 | 32,0 | 34,0 | 10,5 | 10,5 | 140 | PU:6 Length mm:215 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 120-22x24 | 32,0 | 34,0 | 11,5 | 11,5 | 140 | PU:6 Length mm:215 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 120-24x26 | 35,0 | 39,0 | 11,5 | 11,5 | 200 | PU:6 Length mm:240 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 120-24x27 | 35,0 | 39,0 | 11,5 | 11,5 | 205 | PU:6 Length mm:240 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 120-25x28 | 37,0 | 41,0 | 12,5 | 12,5 | 215 | PU:6 Length mm:265 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 120-30x32 | 44,0 | 46,0 | 13,0 | 13,0 | 290 | PU:6 Length mm:285 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 120-36x41 | 51,0 | 58,0 | 15,0 | 15,0 | 515 | PU:3 Length mm:390 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
