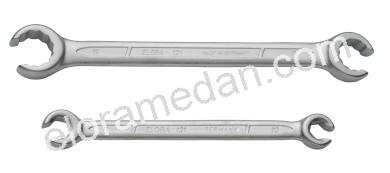

Open Ring Spanner, metric
121-...
Description
- for flare nuts e.g. at gasoline or hydraulic pipes
- open rings are 15° bent
- ring opening set at 30°
- matt chrome plated
- ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208
- according to DIN 3118
Istilah Lain / Penyebutan
kunci nepel, ring belah

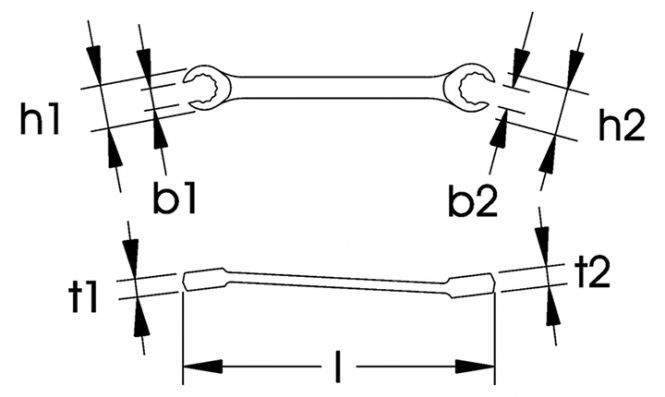

Measurements
| Number | Length mm | H1 mm | H2 mm | B1 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 121-8x10 | 150 | 16,5 | 20,0 | 6,0 | 48 | PU:12 b2 mm:7,0 t1 mm:7,5 t2 mm:9,0 Productinformation: hexagon |
| 121-9x11 | 150 | 16,5 | 20,0 | 6,5 | 48 | PU:12 b2 mm:8,5 t1 mm:7,5 t2 mm:9,0 Productinformation: hexagon |
| 121-10x11 | 165 | 20,0 | 22,0 | 7,0 | 67 | PU:12 b2 mm:8,5 t1 mm:9,0 t2 mm:9,5 Productinformation: hexagon |
| 121-10x12 | 165 | 20,0 | 24,0 | 7,0 | 67 | PU:12 b2 mm:9,0 t1 mm:8,5 t2 mm:10,0 Productinformation: hexagon |
| 121-11x13 | 165 | 20,0 | 23,5 | 8,5 | 67 | PU:12 b2 mm:10,0 t1 mm:8,5 t2 mm:10,0 Productinformation: hexagon |
| 121-12x13 | 190 | 23,5 | 26,0 | 9,0 | 100 | PU:12 b2 mm:10,0 t1 mm:10,0 t2 mm:11,0 Productinformation: hexagon |
| 121-12x14 | 190 | 23,5 | 26,0 | 9,0 | 100 | PU:12 b2 mm:11,0 t1 mm:10,0 t2 mm:11,0 Productinformation: hexagon |
| 121-13x14 | 190 | 23,5 | 26,0 | 9,0 | 100 | PU:12 b2 mm:11,0 t1 mm:10,0 t2 mm:11,0 Productinformation: hexagon |
| 121-13x15 | 190 | 23,5 | 26,0 | 10,0 | 100 | PU:12 b2 mm:12,0 t1 mm:10,0 t2 mm:11,0 Productinformation: bihexagon |
| 121-14x16 | 200 | 25,0 | 29,0 | 11,0 | 135 | PU:12 b2 mm:14,0 t1 mm:11,0 t2 mm:12,5 Productinformation: bihexagon |
| 121-14x17 | 200 | 25,0 | 29,0 | 11,0 | 135 | PU:12 b2 mm:14,0 t1 mm:11,0 t2 mm:12,5 Productinformation: bihexagon |
| 121-16x18 | 210 | 30,0 | 32,0 | 14,0 | 160 | PU:12 b2 mm:15,0 t1 mm:12,0 t2 mm:13,0 Productinformation: bihexagon |
| 121-17x19 | 210 | 30,0 | 32,0 | 14,0 | 160 | PU:12 b2 mm:15,0 t1 mm:12,0 t2 mm:13,0 Productinformation: bihexagon |
| 121-19x22 | 230 | 32,0 | 36,0 | 15,0 | 190 | PU:6 b2 mm:17,0 t1 mm:13,5 t2 mm:15,0 Productinformation: bihexagon |
| 121-21x23 | 245 | 37,0 | 40,0 | 16,5 | 240 | PU:6 b2 mm:18,0 t1 mm:14,0 t2 mm:15,5 Productinformation: bihexagon |
| 121-22x24 | 245 | 37,0 | 40,0 | 17,0 | 240 | PU:6 b2 mm:18,0 t1 mm:14,0 t2 mm:15,5 Productinformation: bihexagon |
| 121-24x27 | 260 | 40,0 | 44,0 | 18,0 | 325 | PU:6 b2 mm:20,0 t1 mm:16,0 t2 mm:16,5 Productinformation: bihexagon |
| 121-30x32 | 288 | 48,0 | 52,0 | 22,0 | 465 | PU:6 b2 mm:24,0 t1 mm:20,0 t2 mm:21,5 Productinformation: bihexagon |
