Open Ring Spanner, inch
121A-...
Description
- for flare nuts e.g. at gasoline or hydraulic pipes
- open ring are 15° bent
- ring opening set at 30°
- matt chrome plated
- ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208
- according to DIN 3118
Istilah Lain / Penyebutan
kunci nepel, ring belah

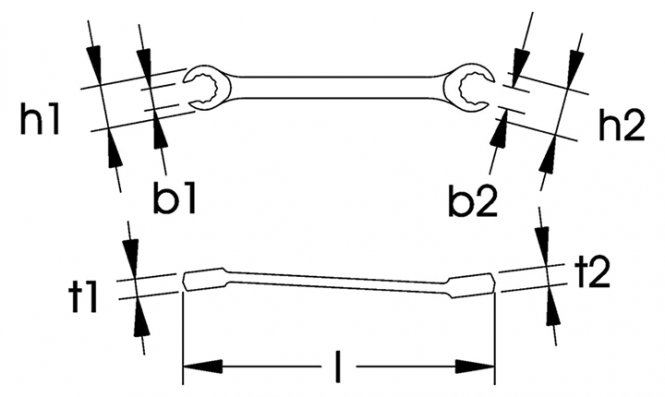

Measurements
| Number | Length mm | H1 mm | H2 mm | B1 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 121A-3/8x7/16 | 165 | 20,0 | 22,0 | 7,0 | 67 | PU:12 b2 mm:8,5 t1 mm:9,0 t2 mm:9,5 Productinformation: hexagon |
| 121A-7/16x1/2 | 165 | 20,0 | 24,0 | 7,0 | 65 | PU:12 b2 mm:9,0 t1 mm:8,5 t2 mm:10,0 Productinformation: hexagon |
| 121A-9/16x5/8 | 200 | 25,0 | 29,0 | 11,0 | 135 | PU:12 b2 mm:14,0 t1 mm:11,0 t2 mm:12,5 Productinformation: bihexagon |
| 121A-5/8x3/4 | 210 | 30,0 | 32,0 | 14,0 | 160 | PU:12 b2 mm:15,0 t1 mm:12,0 t2 mm:13,0 Productinformation: bihexagon |
| 121A-3/4x7/8 | 230 | 32,0 | 36,0 | 15,0 | 190 | PU:6 b2 mm:17,0 t1 mm:13,5 t2 mm:15,0 Productinformation: bihexagon |
| 121A-1x1.1/8 | 260 | 40,0 | 44,0 | 18,0 | 325 | PU:6 b2 mm:20,0 t1 mm:16,0 t2 mm:16,5 Productinformation: bihexagon |
