Obstruction Wrench, inch
146A-...
Description
- for difficult application areas
- small version
- both ends fit same nut size
- extra thin ground jaws
- offset jaw position
- chrome plated, polished
- ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208

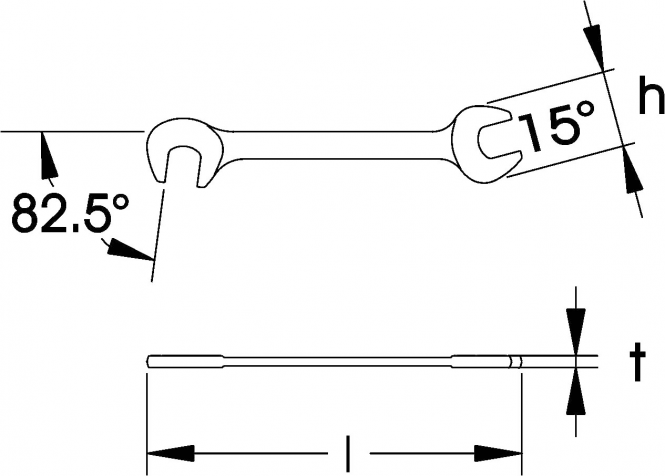

Measurements
| Number | Length mm | H mm | T mm | Weight g |
|---|---|---|---|---|
| 146A-5/32x5/32 | 74 | 10,3 | 3,0 | 6 |
| 146A-3/16x3/16 | 74 | 10,3 | 3,0 | 6 |
| 146A-7/32x7/32 | 84 | 15,7 | 3,0 | 11 |
| 146A-9/32x9/32 | 84 | 15,7 | 3,0 | 11 |
| 146A-5/16x5/16 | 93 | 20,6 | 3,0 | 20 |
| 146A-11/32x11/32 | 93 | 20,6 | 3,0 | 20 |
| 146A-3/8x3/8 | 93 | 20,6 | 3,0 | 20 |
| 146A-7/16x7/16 | 114 | 23,6 | 3,2 | 28 |
| 146A-15/32x15/32 | 136 | 28,5 | 3,8 | 45 |
| 146A-1/2x1/2 | 136 | 28,5 | 3,8 | 45 |
| 146A-9/16x9/16 | 136 | 28,5 | 3,8 | 45 |
| 146A-5/8x5/8 | 156 | 32,4 | 4,5 | 65 |
