Obstruction Wrench, metric
146M-...
Description
- for difficult application areas
- small version
- both ends fit same nut size
- extra thin ground jaws
- offset jaw position
- chrome plated, polished
- ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208

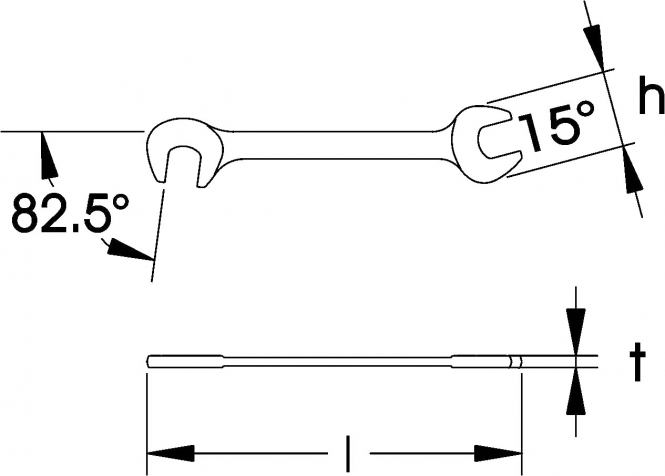

Measurements
| Number | Length mm | H mm | T mm | Weight g |
|---|---|---|---|---|
| 146-4x4 | 74 | 10,3 | 3,0 | 6 |
| 146-4,5x4,5 | 74 | 10,3 | 3,0 | 6 |
| 146-5x5 | 74 | 10,3 | 3,0 | 6 |
| 146-5,5x5,5 | 84 | 15,7 | 3,0 | 11 |
| 146-6x6 | 84 | 15,7 | 3,0 | 11 |
| 146-7x7 | 84 | 15,7 | 3,0 | 11 |
| 146-8x8 | 93 | 20,6 | 3,0 | 20 |
| 146-9x9 | 93 | 20,6 | 3,0 | 20 |
| 146-10x10 | 114 | 23,6 | 3,2 | 28 |
| 146-11x11 | 114 | 23,6 | 3,2 | 28 |
| 146-12x12 | 136 | 28,5 | 3,8 | 45 |
| 146-13x13 | 136 | 28,5 | 3,8 | 45 |
| 146-14x14 | 136 | 28,5 | 3,8 | 45 |
| 146-15x15 | 156 | 32,4 | 3,8 | 65 |
| 146-16x16 | 156 | 32,4 | 4,5 | 65 |
| 146-17x17 | 156 | 32,4 | 4,5 | 65 |
