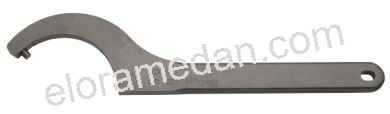

Hook Wrench with Pin
891-...
Description
- for nuts with radial holes according to DIN 1816 and DIN 548
- rounded edges for better handling
- gunmetal finished
- high grade tool steel
- according to DIN 1810, Form B
Measurements
| Number | Length mm | For Nuts mm | Pin-Ø mm | Weight g |
|---|---|---|---|---|
| 891-12 | 110 | 12 - 14 | 2,0 | 23 |
| 891-16 | 110 | 16 - 18 | 2,5 | 23 |
| 891-20 | 110 | 20 - 22 | 2,5 | 23 |
| 891-25 | 136 | 25 - 28 | 3,0 | 49 |
| 891-30 | 136 | 30 - 32 | 4,0 | 49 |
| 891-34 | 170 | 34 - 36 | 4,0 | 88 |
| 891-40 | 170 | 40 - 42 | 4,0 | 88 |
| 891-45 | 205 | 45 - 50 | 5,0 | 160 |
| 891-52 | 205 | 52 - 55 | 5,0 | 160 |
| 891-58 | 240 | 58 - 62 | 5,0 | 260 |
| 891-68 | 240 | 68 - 75 | 6,0 | 260 |
| 891-80 | 280 | 80 - 90 | 6,0 | 400 |
| 891-95 | 280 | 95 - 100 | 8,0 | 400 |
| 891-110 | 335 | 110 - 115 | 8,0 | 725 |
| 891-120 | 335 | 120 - 130 | 8,0 | 725 |
| 891-135 | 380 | 135 - 145 | 8,0 | 1005 |
| 891-155 | 390 | 155 - 165 | 8,0 | 1005 |
| 891-205 | 470 | 205 - 220 | 10,0 | 1500 |
| 891-230 | 570 | 230 - 245 | 10,0 | 2190 |
