Mounting Drift Punch
259-...
Description
- completely hardened and tempered
- striking head inductive tempered
- working edge sharpened and oiled
- shaft black coated
- ELORA-Chrome-Vanadium 59CrV4 / 1.2242

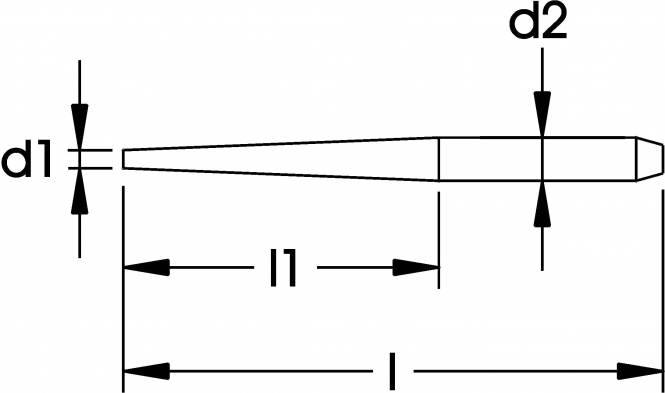

Measurements
| Number | Length mm | L1 mm | D1 Ø mm | D2 Ø mm | Weight g |
|---|---|---|---|---|---|
| 259-5 | 180 | 110 | 5 | 12 | 110 |
| 259-6 | 200 | 120 | 6 | 13 | 150 |
| 259-8 | 200 | 130 | 8 | 16 | 220 |
| 259-9 | 200 | 130 | 9 | 20 | 340 |
| 259-10 | 230 | 140 | 10 | 22 | 460 |
| 259-11 | 250 | 155 | 11 | 24 | 620 |
| 259-12 | 280 | 170 | 12 | 27 | 870 |
| 259-14 | 315 | 190 | 14 | 30 | 1260 |
| 259-15 | 340 | 200 | 15 | 32 | 1570 |
| 259-16 | 380 | 220 | 16 | 36 | 2230 |
