Parallel Pin Punch
271-...
Description
- completely hardened and tempered
- striking head inductive tempered
- working edge sharpened and oiled
- shaft black coated
- ELORA-Chrome-Vanadium 59CrV4 / 1.2242
- according to DIN 6450

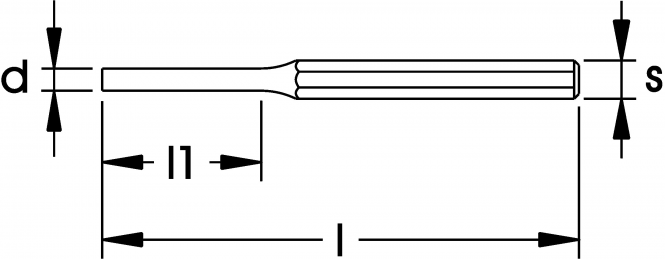

Measurements
| Number | Length mm | L1 mm | D Ø mm | S Ø mm | Weight g |
|---|---|---|---|---|---|
| 271-2 | 150 | 30 | 20 | 10 | 70 |
| 271-3 | 150 | 40 | 30 | 10 | 66 |
| 271-4 | 150 | 50 | 40 | 10 | 66 |
| 271-4L | 175 | 80 | 40 | 10 | 62 |
| 271-5 | 150 | 50 | 50 | 10 | 66 |
| 271-6 | 150 | 50 | 60 | 10 | 70 |
| 271-6L | 175 | 80 | 60 | 10 | 70 |
| 271-7 | 150 | 50 | 70 | 12 | 102 |
| 271-8 | 150 | 50 | 80 | 12 | 108 |
| 271-9 | 150 | 50 | 90 | 12 | 112 |
| 271-10 | 150 | 50 | 100 | 12 | 100 |
