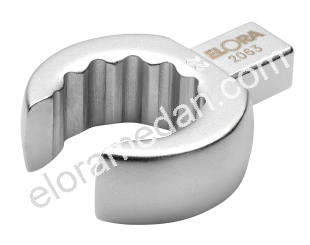

Open Ring Spanner Insert Tool
2063-...
Description
-
- forged
- with locking pin
- chrome-plated
- chrome vanadium 31CrV3 / 1.2208
Measurements
| Number | Size mm | Drive mm | SV mm | B mm | Weight g |
|---|---|---|---|---|---|
| 2063-10 | 10 | 9x12 | 17,5 | 21,2 | 63 |
| 2063-11 | 11 | 9x12 | 17,5 | 22,6 | 63 |
| 2063-12 | 12 | 9x12 | 17,5 | 24,1 | 65 |
| 2063-13 | 13 | 9x12 | 17,5 | 25,2 | 64 |
| 2063-14 | 14 | 9x12 | 17,5 | 27,3 | 68 |
| 2063-16 | 16 | 9x12 | 17,5 | 30,1 | 71 |
| 2063-17 | 17 | 9x12 | 17,5 | 31,6 | 73 |
| 2063-18 | 18 | 9x12 | 17,5 | 33,3 | 78 |
| 2063-19 | 19 | 9x12 | 17,5 | 34,6 | 80 |
| 2063-21 | 21 | 9x12 | 17,5 | 37,7 | 81 |
| 2063-22 | 22 | 9x12 | 17,5 | 39,3 | 86 |
