Standard Puller
173-...
Description
- heavy forged pattern
- 2 arms
- by turning the puller hooks usable as external and internal puller
- zinc-plated, spindle gunmetal-finish
- high grade tool steel
Measurements

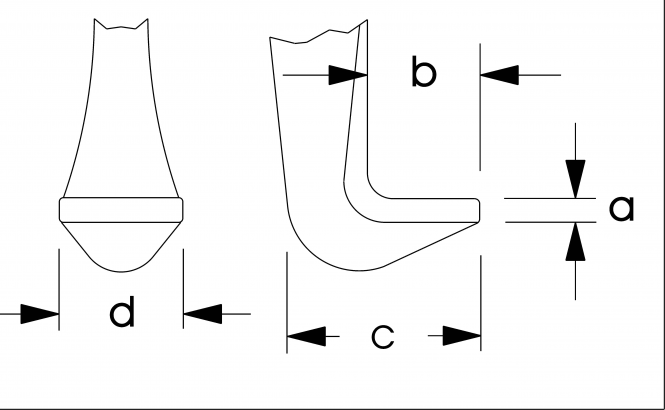

| Number | External tension mm | Internal tension mm | Opening mm | A mm | Weight g | More |
|---|---|---|---|---|---|---|
| 173-80 | 20-90 | 70-130 | 100 | 3 | 1100 | PU:1 b mm:13 c mm:25 d mm:20 Wrench size mm:17 |
| 173-130 | 25-130 | 80-180 | 100 | 3 | 1200 | PU:1 b mm:13 c mm:25 d mm:20 Wrench size mm:17 |
| 173-160 | 50-160 | 105-220 | 150 | 4 | 2860 | PU:1 b mm:16 c mm:35 d mm:25 Wrench size mm:22 |
| 173-200 | 60-200 | 120-270 | 150 | 4 | 3420 | PU:1 b mm:16 c mm:35 d mm:25 Wrench size mm:22 |
| 173-250 | 80-250 | 160-330 | 200 | 5 | 7480 | PU:1 b mm:25 c mm:54 d mm:35 Wrench size mm:27 |
| 173-350 | 80-350 | 160-420 | 200 | 5 | 8600 | PU:1 b mm:25 c mm:54 d mm:35 Wrench size mm:27 |
| 173-520 | 110-520 | 195-600 | 200 | 5 | 13595 | PU:1 b mm:25 c mm:54 d mm:35 Wrench size mm:27 |
| 173-640 | 140-640 | 225-715 | 225 | 5 | 23160 | PU:1 b mm:25 c mm:54 d mm:35 Wrench size mm:27 |
