Standard Puller
317-...
Description
- for pulling off ball bearings, gear-wheels, discs, etc.
- heavy-duty, forged pattern
- 2 arms
- by turning the puller hooks usable as external and internal puller
- zinc-plated, spindle gunmetal-finish
- high grade tool steel
Measurements

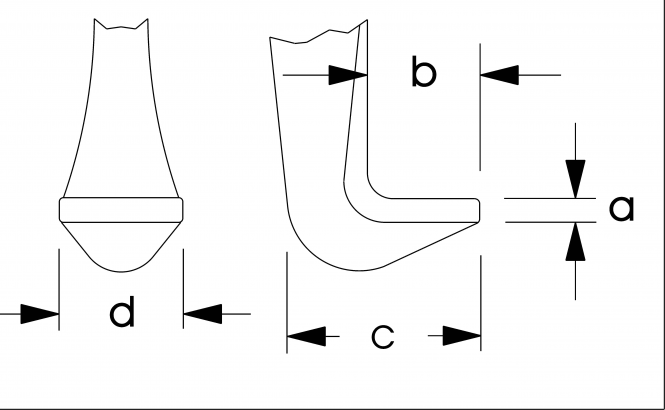

| Number | External tension mm | Internal tension mm | Span depth mm | A mm | Weight g | More |
|---|---|---|---|---|---|---|
| 317- 80 | 15-80 | 70-130 | 100 | 3 | 922 | PU:1 b mm:12 c mm:22 d mm:22 Wrench size mm:17 |
| 317-120 | 15-120 | 80-170 | 100 | 3 | 1052 | PU:1 b mm:12 c mm:22 d mm:22 Wrench size mm:17 |
| 317-160 | 20-160 | 110-210 | 150 | 4 | 2680 | PU:1 b mm:18 c mm:30 d mm:29 Wrench size mm:22 |
| 317-200 | 20-200 | 120-250 | 150 | 4 | 2920 | PU:1 b mm:18 c mm:30 d mm:29 Wrench size mm:22 |
| 317-250 | 40-250 | 170-300 | 200 | 6,5 | 6760 | PU:1 b mm:23 c mm:43 d mm:38 Wrench size mm:27 |
| 317-350 | 40-350 | 190-400 | 200 | 6,5 | 7760 | PU:1 b mm:23 c mm:43 d mm:38 Wrench size mm:27 |
