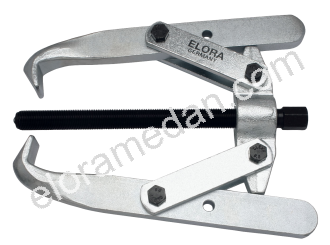

Puller
176-...
Description
- for pulling off ball bearings, gear-wheels, discs, etc.
- heavy-duty, forged pattern
- 2 arms
- zinc-plated, spindle gunmetal-finish
- high grade tool steel

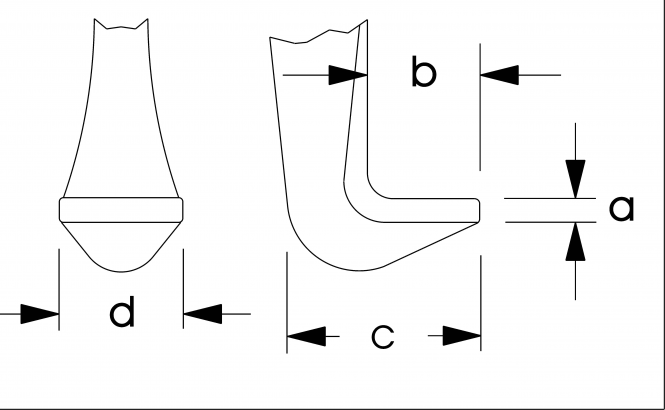

Measurements
| Number | Span width mm | Span depth mm | A mm | B mm | Weight g | More |
|---|---|---|---|---|---|---|
| 176-100 | 18-100 | 85 | 2 | 10 | 450 | PU:1 c mm:20 d mm:14 Wrench size mm:12 |
| 176-200 | 20-200 | 150 | 3 | 14 | 980 | PU:1 c mm:25 d mm:18 Wrench size mm:17 |
| 176-250 | 35-250 | 220 | 4 | 20 | 2450 | PU:1 c mm:36 d mm:25 Wrench size mm:19 |
| 176-300 | 50-300 | 250 | 5 | 25 | 5300 | PU:1 c mm:48 d mm:30 Wrench size mm:22 |
| 176-350 | 50-350 | 350 | 5 | 25 | 6300 | PU:1 c mm:48 d mm:30 Wrench size mm:22 |
| 176-400 | 50-400 | 400 | 5 | 25 | 6700 | PU:1 c mm:48 d mm:30 Wrench size mm:22 |
| 176-450 | 50-450 | 450 | 5 | 25 | 7200 | PU:1 c mm:48 d mm:30 Wrench size mm:22 |
| 176-500 | 50-500 | 500 | 5 | 25 | 7475 | PU:1 c mm:48 d mm:30 Wrench size mm:22 |
