Puller
177-...
Description
- for pulling off ball bearings, gear-wheels, v-belt pulley etc.
- heavy-duty, forged pattern
- 3 arms
- zinc-plated, spindle gunmetal-finish
- high grade tool steel
Measurements

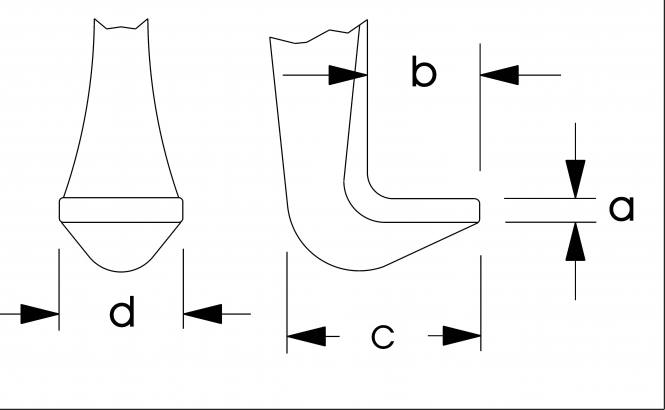

| Number | Span width mm | Span depth mm | A mm | B mm | Weight g | More |
|---|---|---|---|---|---|---|
| 177-100 | 18-100 | 85 | 2 | 8 | 500 | PU:1 c mm:20 d mm:17 Wrench size mm:12 |
| 177-200 | 20-200 | 150 | 3 | 12 | 1700 | PU:1 c mm:25 d mm:18 Wrench size mm:17 |
| 177-250 | 35-250 | 220 | 3 | 18 | 3900 | PU:1 c mm:32 d mm:18 Wrench size mm:19 |
| 177-300 | 50-300 | 250 | 5 | 22 | 7300 | PU:1 c mm:50 d mm:30 Wrench size mm:22 |
| 177-350 | 50-350 | 350 | 5 | 22 | 8300 | PU:1 c mm:50 d mm:30 Wrench size mm:22 |
| 177-400 | 50-400 | 400 | 5 | 22 | 8800 | PU:1 c mm:50 d mm:30 Wrench size mm:22 |
| 177-450 | 50-450 | 450 | 5 | 22 | 9400 | PU:1 c mm:50 d mm:30 Wrench size mm:22 |
| 177-500 | 50-500 | 500 | 5 | 22 | 10000 | PU:1 c mm:50 d mm:30 Wrench size mm:22 |
