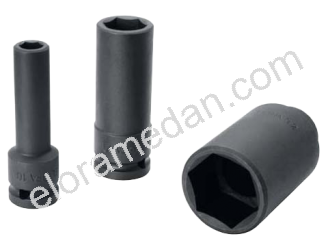

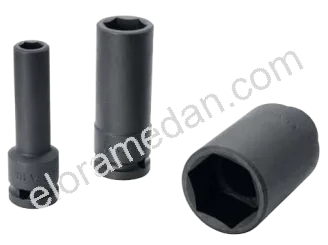

Impact Sockets 1/2", extra deep, metric
790LT-...
Description
- for power tools
- special steel, phosphated
- female square drive according to DIN 3121-G 12,5, ISO 1174
Measurements

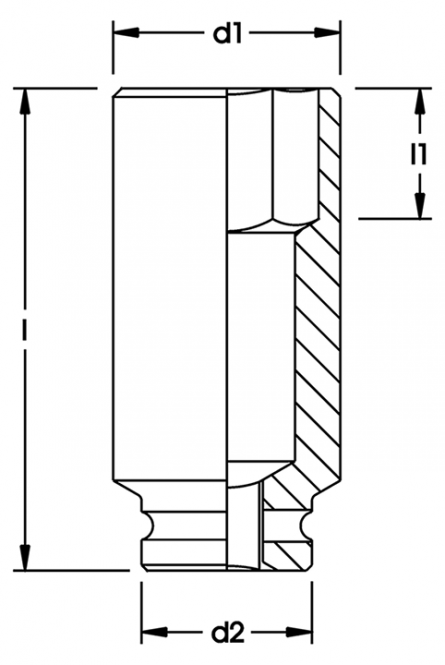

| Number | Length mm | L1 mm | D1 mm | D2 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 790LT-10 | 85 | 12 | 17 | 25 | 155 | PU:6 Locking Pin :7903-20 Locking Ring :7904-20 Productinformation: Attention: locking pin and locking ring are not included! |
| 790LT-13 | 85 | 14 | 21 | 25 | 160 | PU:6 Locking Pin :7903-20 Locking Ring :7904-20 Productinformation: Attention: locking pin and locking ring are not included! |
| 790LT-14 | 85 | 15 | 22,5 | 25 | 185 | PU:6 Locking Pin :7903-20 Locking Ring :7904-20 Productinformation: Attention: locking pin and locking ring are not included! |
| 790LT-15 | 85 | 15 | 23,5 | 30 | 210 | PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included! |
| 790LT-16 | 85 | 15 | 25 | 30 | 210 | PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included! |
| 790LT-17 | 85 | 15 | 26 | 30 | 230 | PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included! |
| 790LT-18 | 85 | 16 | 27 | 30 | 240 | PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included! |
| 790LT-19 | 85 | 16 | 28,5 | 30 | 250 | PU:3 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included! |
| 790LT-20 | 85 | 19 | 30 | 30 | 260 | PU:3 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included! |
| 790LT-21 | 85 | 19 | 31 | 30 | 275 | PU:3 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included! |
| 790LT-22 | 85 | 19 | 32,5 | 30 | 300 | PU:3 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included! |
| 790LT-24 | 85 | 21 | 35 | 30 | 370 | PU:3 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included! |
| 790LT-27 | 85 | 23 | 38 | 30 | 430 | PU:3 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included! |
| 790LT-30 | 85 | 25 | 42 | 30 | 510 | PU:3 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included! |
| 790LT-32 | 85 | 25 | 44 | 30 | 560 | PU:3 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included! |
