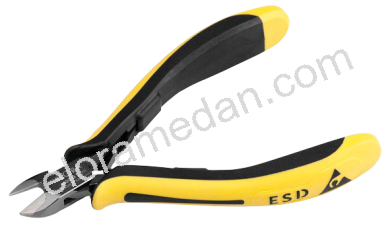

Electronic Tungsten Carbide Side Cutter ESD
4620
Description
- for cutting very hard materials with coincident maximum stability under load, for all work with electrostatic endangered components
- oval head, with bevel, maximum stability under load due to carbide inlay and box joint, with double opening leaf spring, polished and high gloss gunmetal-finish, with 2-C ESD handles, surface resistance 106-109 Ohm
- cutting edge hardness 84-86 HRA
- ELORA-Chrome-Vanadium 80 CrV2 / 1.2235 and special carbide metal
- DIN ISO 9654, ESD: DIN IEC 614340-5-1
Measurements
| Number | Piano mm / AWG | Hard mm / AWG | Medium mm / AWG | Length mm | Weight g |
|---|---|---|---|---|---|
| 4620-M E 2K | 0,6 / 22 | 1,0 / 18 | 2,0 / 12 | 125 | 98 |
