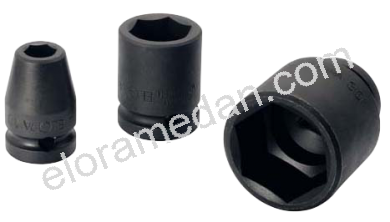

Impact Sockets 1/2", metric

790-...

Description

for power tools
special steel, phosphated
female square drive according to DIN 3121-G 12,5, ISO 1174
according to DIN 3129, ISO 2725-2

Istilah Lain / Penyebutan

impact socket 1/2, mata kunci sok impact 1/2, mata sock impact 1/2, mata sok impact 1/2

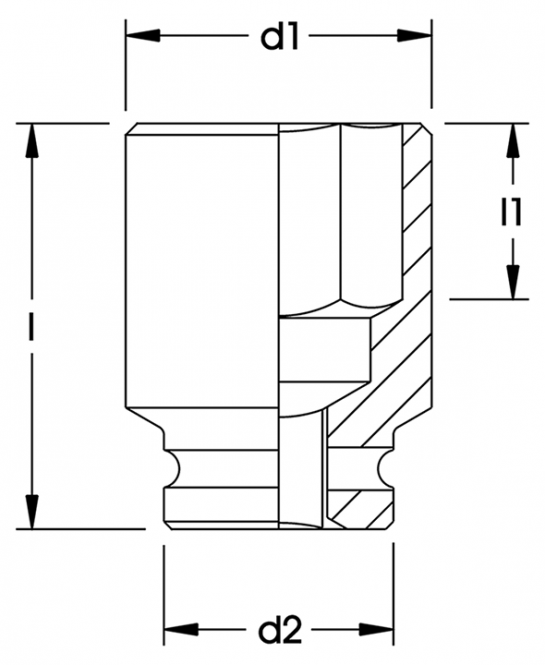

Measurements

Number	Length mm	L1 mm	D1 mm	D2 mm	Weight g	More
790-10	36	7	17,5	25	90	PU:6 Locking Pin :7903-20 Locking Ring :7904-20 Productinformation: Attention: locking pin and locking ring are not included!
790-11	36	7	18,5	25	90	PU:6 Locking Pin :7903-20 Locking Ring :7904-20 Productinformation: Attention: locking pin and locking ring are not included!
790-12	36	8	20	25	95	PU:6 Locking Pin :7903-20 Locking Ring :7904-20 Productinformation: Attention: locking pin and locking ring are not included!
790-13	36	8	21	25	88	PU:6 Locking Pin :7903-20 Locking Ring :7904-20 Productinformation: Attention: locking pin and locking ring are not included!
790-14	37	9	22,5	25	90	PU:6 Locking Pin :7903-20 Locking Ring :7904-20 Productinformation: Attention: locking pin and locking ring are not included!
790-15	37	9	23,5	30	135	PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included!
790-16	37	10	25	30	135	PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included!
790-17	37	10	26	30	140	PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included!
790-18	38	11	27,5	30	137	PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included!
790-19	38	12	28,5	30	130	PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included!
790-20	38	12	30	30	130	PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included!
790-21	39	13	31	30	130	PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included!
790-22	39	14	32,5	30	150	PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included!
790-23	39	15	33,5	30	180	PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included!
790-24	42	16	35	30	185	PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included!
790-25	42	16	36	30	215	PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included!
790-26	42	17	37,5	30	225	PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included!
790-27	45	18	38,5	30	230	PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included!
790-28	45	18	40	30	255	PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included!
790-29	45	19	41	30	245	PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included!
790-30	49	20	42,5	30	250	PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included!
790-32	49	21	45	30	250	PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included!
790-34	49	22	47,5	30	275	PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included!
