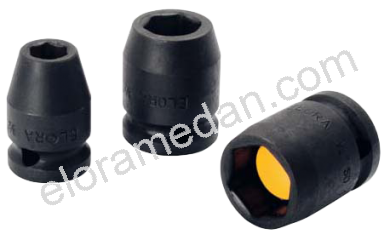

Impact Sockets 1/2"
790MG-...
Description
- for power tools
- special steel, gunmetal-finish
- female square drive according to DIN 3121-G 12,5, ISO 1174
- according to DIN 3129, ISO 2725-2
Istilah Lain / Penyebutan
impact socket magnet 1/2, mata kunci sok impact magnet 1/2, mata sock impact magnet 1/2, mata sok impact magnet 1/2
Measurements
| Number | Length mm | L1 mm | D1 mm | D2 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 790MG-10 | 38 | 5 | 17 | 25 | 92 | PU:6 Locking Pin :7903-20 Locking Ring :7904-20 Productinformation: Attention: locking pin and locking ring are not included! |
| 790MG-11 | 38 | 5 | 19 | 25 | 92 | PU:6 Locking Pin :7903-20 Locking Ring :7904-20 Productinformation: Attention: locking pin and locking ring are not included! |
| 790MG-12 | 38 | 6 | 20 | 25 | 92 | PU:6 Locking Pin :7903-20 Locking Ring :7904-20 Productinformation: Attention: locking pin and locking ring are not included! |
| 790MG-13 | 38 | 6 | 21 | 25 | 92 | PU:6 Locking Pin :7903-20 Locking Ring :7904-20 Productinformation: Attention: locking pin and locking ring are not included! |
| 790MG-14 | 38 | 7 | 22,5 | 25 | 92 | PU:6 Locking Pin :7903-20 Locking Ring :7904-20 Productinformation: Attention: locking pin and locking ring are not included! |
| 790MG-15 | 38 | 7 | 23,7 | 30 | 132 | PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included! |
| 790MG-17 | 38 | 9 | 26 | 30 | 132 | PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included! |
| 790MG-19 | 38 | 9,5 | 28,7 | 30 | 132 | PU:6 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included! |
