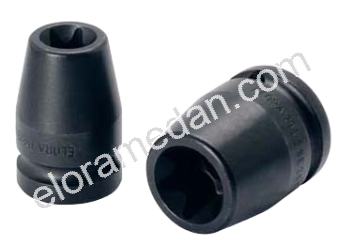

Impact Sockets 1/2"
798-E...
Description
- for outside TORX®screws
- for power tools
- special steel, phosphated
- female square according to DIN 3121-G 12,5, ISO 1174
- TORX®= reg. trademark of Acument Intellectual Properties, LLC. USA
Istilah Lain / Penyebutan
impact socket torx 1/2, mata kunci sok impact torx 1/2, mata sock impact torx 1/2, mata sok impact torx 1/2

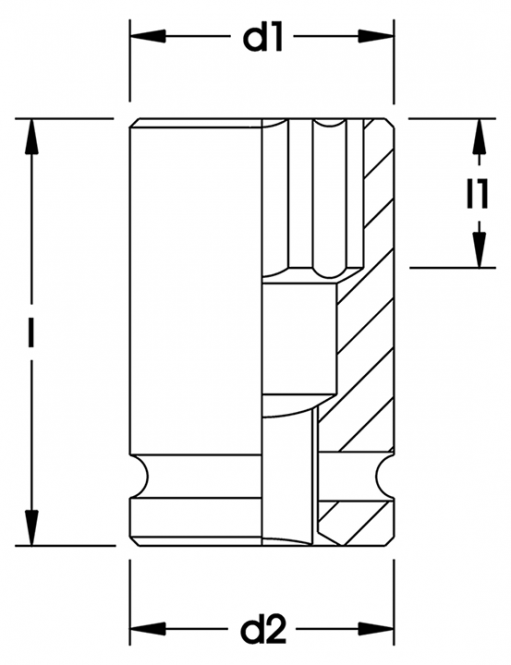

Measurements
| Number | Torx size corner to corner mm | Length mm | L1 mm | D1 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 798-E10 | 9,42 | 38 | 9 | 15 | 84 | PU:6 d2 mm:25 Locking Pin :7903-20 Locking Ring :7904-20 Productinformation: Attention: locking pin and locking ring are not included! |
| 798-E14 | 12,90 | 38 | 12 | 18,5 | 86 | PU:6 d2 mm:25 Locking Pin :7903-20 Locking Ring :7904-20 Productinformation: Attention: locking pin and locking ring are not included! |
| 798-E18 | 16,70 | 38 | 12 | 22 | 90 | PU:6 d2 mm:25 Locking Pin :7903-20 Locking Ring :7904-20 Productinformation: Attention: locking pin and locking ring are not included! |
| 798-E20 | 18,45 | 38 | 13 | 25 | 128 | PU:6 d2 mm:30 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included! |
| 798-E24 | 22,16 | 38 | 17 | 28,5 | 142 | PU:6 d2 mm:30 Locking Pin :7903-25 Locking Ring :7904-24 Productinformation: Attention: locking pin and locking ring are not included! |
