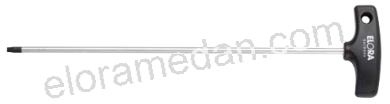

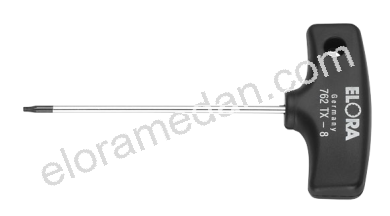

TORX®-Key with T-Handle
762TX-...
Description
- for inside TORX® screws
- blade matt chrome plated, tip gunmetal finished
- black plastic-T-handle with suspension hole
- TX-6 to TX-45: Chrome-Vanadium 61CrSiV5 / 1.2243
- TX-50 and TX-60: Chrome-Vanadium 59CrV4 / 1.2242
- TORX® = reg. trademark of Acument Intellectual Properties, LLC. USA
Measurements
| Number | Torx size corner to corner mm | Length mm | Sizes of threads | Weight g |
|---|---|---|---|---|
| 762TX-6 | 1,69 | 80 | M 2 | 34 |
| 762TX-7 | 1,99 | 80 | M 2,5 | 34 |
| 762TX-8 | 2,31 | 80 | M 2,5 | 34 |
| 762TX-9 | 2,5 | 80 | M 3 | 34 |
| 762TX-10 | 2,74 | 100 | M 3 | 38 |
| 762TX-15 | 3,27 | 100 | M 3,5 | 38 |
| 762TX-20 | 3,86 | 100 | M 4 | 38 |
| 762TX-25 | 4,43 | 105 | M 5 | 72 |
| 762TX-27 | 4,99 | 105 | M 5 | 74 |
| 762TX-30 | 5,52 | 125 | M 6 | 102 |
| 762TX-40 | 6,65 | 125 | M 8 | 116 |
| 762TX-45 | 7,82 | 125 | M 8 | 130 |
| 762TX-50 | 8,83 | 125 | M 8 | 130 |
| 762TX-60 | 13,25 | 125 | M 10 | 150 |
