Sockets 1", inch
780A-...
Description
- hot forged
- matt chrome-plated
- Chrome-Vanadium 31 CrV 3 / 1.2208
- female square according to DIN 3120-D 25, ISO 1174, with locking pin
- according to DIN 3124, ISO 2725-1

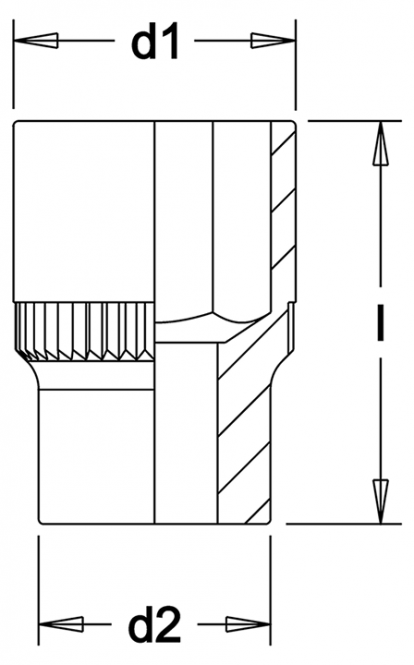

Measurements
| Number | D1 mm | D2 mm | Length mm | Weight g |
|---|---|---|---|---|
| 780A-1.7/16 | 52,0 | 45,0 | 65,0 | 504 |
| 780-38 / 1.1/2 | 54,0 | 45,0 | 65,0 | 514 |
| 780-46 / 1.13/16 | 65,0 | 50,0 | 75,0 | 860 |
| 780A-2 | 70,0 | 50,0 | 75,0 | 931 |
| 780A-2.3/16 | 76,0 | 55,0 | 80,0 | 1190 |
| 780A-2.3/8 | 82,0 | 55,0 | 80 | 1351 |
| 780A-2.9/16 | 88,0 | 55,0 | 90 | 1549 |
| 780A-2.5/8 | 90,0 | 55,0 | 90,0 | 1557 |
| 780A-2.3/4 | 94,0 | 60,0 | 93 | 1909 |
| 780A-3 | 102,0 | 60,0 | 103,0 | 2200 |
| 780A-3.1/8 | 105,0 | 60,0 | 103,0 | 2280 |
