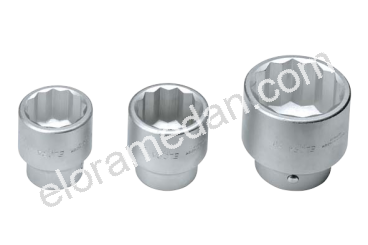

Sockets 1", metric
780M-...
Description
- hot forged
- matt chrome-plated
- Chrome-Vanadium 31 CrV 3 / 1.2208
- female square according to DIN 3120-D 25, ISO 1174, with locking pin
- according to DIN 3124, ISO 2725-1

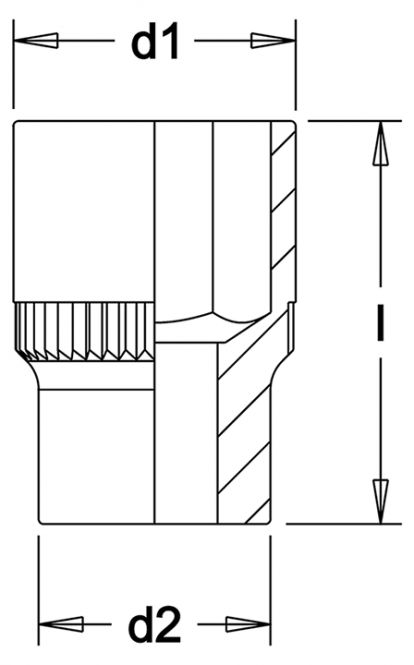

Measurements
| Number | D1 mm | D2 mm | Length mm | Weight g |
|---|---|---|---|---|
| 780-36 | 52,0 | 45,0 | 65,0 | 508 |
| 780-38 / 1.1/2 | 54,0 | 45,0 | 65,0 | 514 |
| 780-41 / 1.5/8 | 57,0 | 45,0 | 70,0 | 586 |
| 780-46 / 1.13/16 | 65,0 | 50,0 | 75,0 | 860 |
| 780-50 | 70,0 | 50,0 | 75,0 | 942 |
| 780-55 | 76,0 | 55,0 | 80,0 | 1178 |
| 780-60 | 82,0 | 55,0 | 84,0 | 1387 |
| 780-65 | 88,0 | 55,0 | 87,5 | 1525 |
| 780-70 | 94,0 | 60,0 | 93,0 | 1915 |
| 780-75 | 100,0 | 60,0 | 97,0 | 2100 |
| 780-80 | 105,0 | 60,0 | 103,0 | 2390 |
