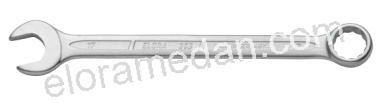

Combination Spanner, metric
203M-...
Description
- short version, both ends fit same nut size
- bent
- matt chrome plated
- ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208
- according to DIN 3113, Form A, ISO 3318, ISO 7738

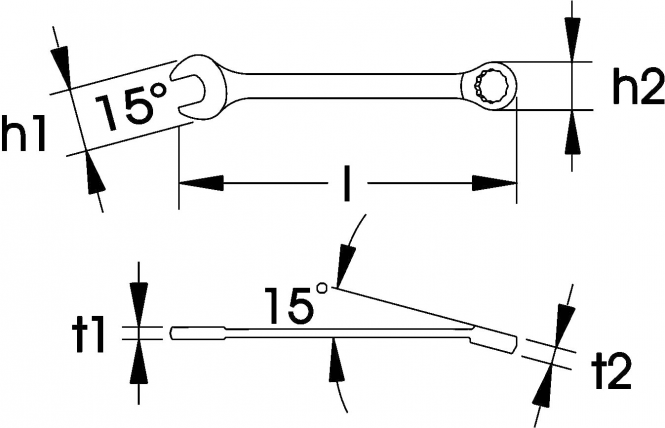

Measurements
| Number | Length mm | H1 mm | H2 mm | T1 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 203-6 | 103 | 16,0 | 11,0 | 4,0 | 15 | PU:12 t2 mm:6,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-7 | 108 | 16,0 | 12,5 | 4,0 | 15 | PU:12 t2 mm:6,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-8 | 112 | 18,5 | 14,0 | 4,2 | 22 | PU:12 t2 mm:7,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-9 | 124 | 20,5 | 16,0 | 4,2 | 26 | PU:12 t2 mm:7,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-10 | 132 | 21,5 | 16,5 | 4,7 | 33 | PU:12 t2 mm:7,4 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-11 | 142 | 23,5 | 18,0 | 5,3 | 40 | PU:12 t2 mm:7,9 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-12 | 155 | 26,0 | 19,5 | 5,4 | 56 | PU:12 t2 mm:8,4 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-13 | 162 | 28,0 | 20,5 | 5,8 | 57 | PU:12 t2 mm:8,4 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-14 | 172 | 30,0 | 22,5 | 5,9 | 70 | PU:12 t2 mm:9,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-15 | 187 | 30,5 | 23,5 | 6,2 | 70 | PU:12 t2 mm:9,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-16 | 196 | 34,0 | 25,5 | 6,3 | 90 | PU:6 t2 mm:10,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-17 | 208 | 34,0 | 26,5 | 6,3 | 90 | PU:6 t2 mm:10,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-18 | 220 | 38,0 | 28,5 | 6,7 | 130 | PU:6 t2 mm:11,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-19 | 226 | 40,0 | 29,5 | 7,4 | 130 | PU:6 t2 mm:11,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-20 | 230 | 41,0 | 31,5 | 7,6 | 175 | PU:6 t2 mm:12,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-21 | 230 | 41,0 | 31,5 | 7,6 | 170 | PU:6 t2 mm:12,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-22 | 246 | 46,0 | 34,0 | 8,4 | 170 | PU:6 t2 mm:12,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-23 | 270 | 49,0 | 36,0 | 8,6 | 245 | PU:3 t2 mm:13,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-24 | 270 | 49,0 | 36,0 | 8,6 | 250 | PU:3 t2 mm:13,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-25 | 288 | 54,0 | 38,0 | 9,0 | 320 | PU:3 t2 mm:13,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-26 | 288 | 54,0 | 38,0 | 9,5 | 320 | PU:3 t2 mm:14,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-27 | 316 | 58,0 | 42,0 | 10,2 | 400 | PU:3 t2 mm:15,4 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-28 | 316 | 58,0 | 42,0 | 10,2 | 400 | PU:3 t2 mm:15,4 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-29 | 339 | 63,0 | 45,0 | 11,2 | 455 | PU:3 t2 mm:17,2 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-30 | 339 | 63,0 | 45,0 | 11,2 | 510 | PU:3 t2 mm:17,2 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-32 | 362 | 66,0 | 48,0 | 11,8 | 600 | PU:3 t2 mm:18,6 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203-34 | 390 | 72,0 | 50,0 | 13,5 | 720 | PU:3 t2 mm:20,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
