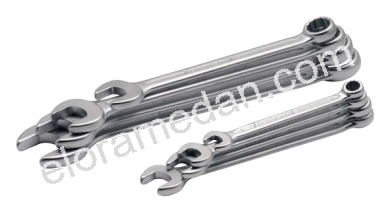

Combination Spanner Sets, metric
203S...M
Description
- carton box packed
- short version, both ends fit same nut size
- bent
- matt chrome plated
- ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208
- according to DIN 3113, Form A, ISO 3318, ISO 7738
Measurements
| Number | Weight g | More |
|---|---|---|
| 203S 8M | 718 | PU:1 Contents: 203- 8, 10, 11, 13, 14, 17, 19, 22 mm - Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203S 8M-1 | 470 | PU:1 Contents: 203- 8, 9, 10, 11, 13, 14, 17, 19 mm - Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203S 10M | 520 | PU:1 Contents: 203- 6, 7, 8, 9, 10, 11, 13, 14, 17, 19 mm - Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203S 12M | 1008 | PU:1 Contents: 203- 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 22 mm - Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203S 12M-1 | 2400 | PU:1 Contents: 203- 10, 11, 12, 13, 14, 17, 19, 22, 24, 27, 30, 32 mm - Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203S 16M | 2470 | PU:1 Contents: 203- 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19, 22, 24, 27, 30, 32 mm - Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203S 17M | 1380 | PU:1 Contents: 203- 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22 mm - Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203S 18M | 4600 | PU:1 Contents: 203- 8, 9, 10, 11, 12, 13, 14, 16, 17, 18, 19, 21, 22, 24, 27, 30, 32, 34 mm - Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203S 25M | 4655 | PU:1 Contents: 203- 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19,20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32 mm - Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 203S 26M | 4840 | PU:1 Contents: 203- 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20,21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32 mm - Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
