Combination Spanner with Ring Ratchet, inch
204A-...
Description
- straight version, both ends fit same nut size
- smallest possible swivel angle 5 °
- high torque transmission
- ground heads
- matt chrome plated
- using ELORA Adaptors No. 118-..., wrench will be usable as (bit-) ratchet
- ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208

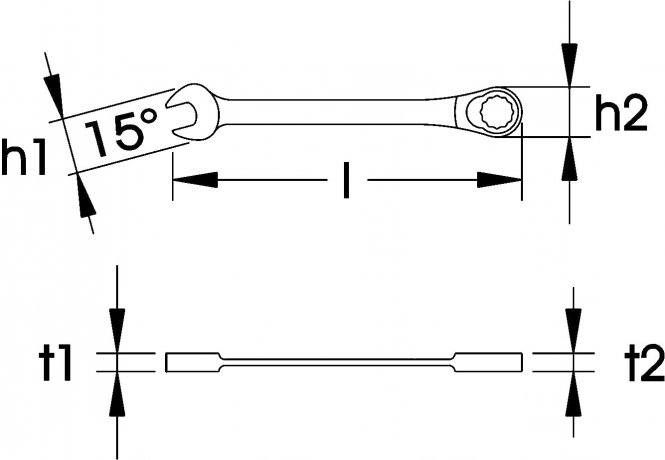

Measurements
| Number | Length mm | H1 mm | H2 mm | T1 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 204A-5/16 | 140 | 16,0 | 17,0 | 5,0 | 30 | PU:6 t2 mm:7,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204A-3/8 | 160 | 20,5 | 20,5 | 5,5 | 50 | PU:6 t2 mm:7,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204A-7/16 | 165 | 22,5 | 22,0 | 6,0 | 60 | PU:6 t2 mm:7,8 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204A-1/2 | 180 | 27,0 | 25,0 | 6,5 | 90 | PU:6 t2 mm:9,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204A-9/16 | 190 | 28,5 | 27,0 | 7,0 | 105 | PU:6 t2 mm:9,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204A-5/8 | 210 | 33,0 | 29,5 | 7,0 | 145 | PU:6 t2 mm:10,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204A-11/16 | 225 | 35,0 | 32,0 | 8,0 | 160 | PU:6 t2 mm:10,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204A-3/4 | 245 | 38,5 | 34,5 | 8,5 | 230 | PU:6 t2 mm:11,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204A-13/16 | 275 | 43,0 | 38,0 | 8,9 | 320 | PU:6 t2 mm:12,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204A-7/8 | 290 | 45,0 | 41,0 | 9,5 | 325 | PU:6 t2 mm:13,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204A-15/16 | 320 | 52,0 | 45,0 | 10,0 | 460 | PU:6 t2 mm:14,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204A-1 | 320 | 52,0 | 45,0 | 10,0 | 460 | PU:6 t2 mm:14,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
