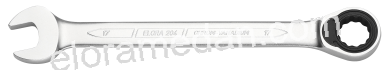

Combination Spanner with Ring Ratchet, metric
204-...
Description
- straight version, both ends fit same nut size
- smallest possible swivel angle 5 °
- high torque transmission
- ground heads
- matt chrome plated
- using ELORA-Adaptors No. 118-..., wrench will be usable as (bit-) ratchet
- ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208

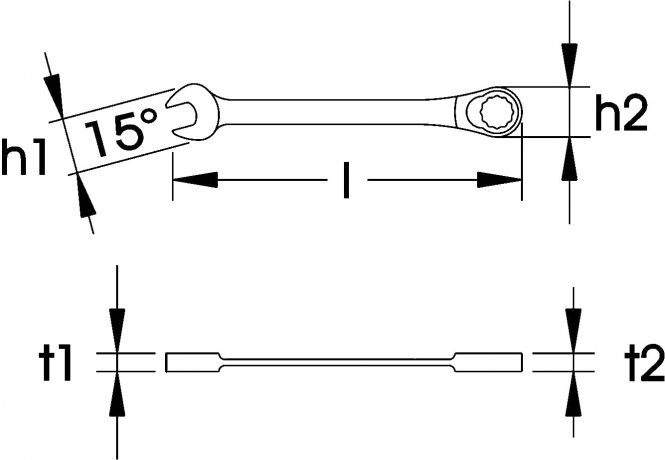

Measurements
| Number | Length mm | H1 mm | H2 mm | T1 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 204-7 | 140 | 16,0 | 17,0 | 5,0 | 30 | PU:6 t2 mm:7,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-8 | 140 | 16,0 | 17,0 | 5,0 | 40 | PU:6 t2 mm:7,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-9 | 150 | 18,5 | 18,5 | 5,0 | 45 | PU:6 t2 mm:7,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-10 | 160 | 20,5 | 20,5 | 5,5 | 50 | PU:6 t2 mm:7,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-11 | 165 | 22,5 | 22,0 | 6,0 | 60 | PU:6 t2 mm:7,8 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-12 | 170 | 25,0 | 22,5 | 6,0 | 75 | PU:6 t2 mm:8,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-13 | 180 | 27,0 | 25,0 | 6,5 | 90 | PU:6 t2 mm:9,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-14 | 190 | 28,5 | 27,0 | 7,0 | 105 | PU:6 t2 mm:9,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-15 | 200 | 31,0 | 28,5 | 7,0 | 125 | PU:6 t2 mm:9,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-16 | 210 | 33,0 | 29,5 | 7,0 | 145 | PU:6 t2 mm:10,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-17 | 225 | 35,0 | 32,0 | 8,0 | 160 | PU:6 t2 mm:10,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-18 | 235 | 37,0 | 32,0 | 8,0 | 190 | PU:6 t2 mm:10,8 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-19 | 245 | 38,5 | 34,5 | 8,3 | 230 | PU:6 t2 mm:11,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-22 | 290 | 45,0 | 41,0 | 9,3 | 325 | PU:6 t2 mm:13,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-24 | 320 | 45,0 | 41,0 | 9,3 | 460 | PU:6 t2 mm:14,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-27 | 355 | 55,0 | 49,0 | 10,0 | 640 | PU:6 t2 mm:16,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-30 | 385 | 62,0 | 54,5 | 10,0 | 795 | PU:6 t2 mm:17,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-32 | 415 | 67,0 | 58,0 | 10,0 | 955 | PU:6 t2 mm:17,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
